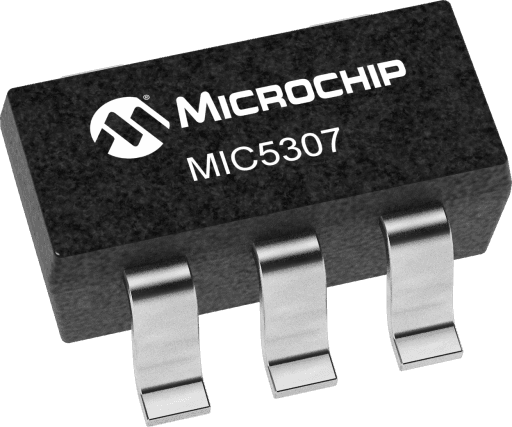

Microchip MIC5307-3.0YD5-TR

Manufacturer No:

MIC5307-3.0YD5-TR

Manufacturer:

Microchip

Package:

SOT-23-5 Thin, TSOT-23-5

Description:

300mA Single Low Iq ULDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5307-3.0YD5-TR information

Microchip MIC5307-3.0YD5-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5307-3.0YD5-TR.

Type
Parameter

VIN Min (V) V (volt)
2.4

VIN Max V (volt)
5.5

VOUT V (volt)
1.5, 1.8, 2.8, 3.0

IOUT #1 Max mA (milliampere)
300

Rated IOUT Max mA (milliampere)
300

Quiescent Current µA (microampere)
18

Voltage Drop Typ (mV)
120

Accuracy (+/-) %
2

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5307-3.0YD5-TR.

Data Sheets:

a1afa8d3e1cb5cfa70621caf72466a54.pdf

The MIC5307 is a micropower, µCap low dropout regulator designed for optimal performance where smaller packages are required. It is capable of sourcing 300mA of output current while only drawing 20µA of operating current. This high performance LDO offers fast transient response and good PSRR while consuming a minimum of current.

Ideal for battery-operated applications, the MIC5307 offers 1% initial accuracy, extremely low dropout voltage and is equipped with a TTL logic-compatible enable pin. The MIC5307 can be put into a zero off-mode current state, drawing no current when disabled.

The MIC5307 is a µCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost.

The MIC5307 is available in fixed output voltages in the Thin SOT23-5 package.

Input voltage range: 2.4V to 5.5V
Ultra-low IQ: only 20µA operating current
Stable with ceramic output capacitor
Low dropout voltage of 120mV at 300mA
±1.0% initial accuracy
±2.0% over temperature
Thermal shutdown protection
Current limit protection
