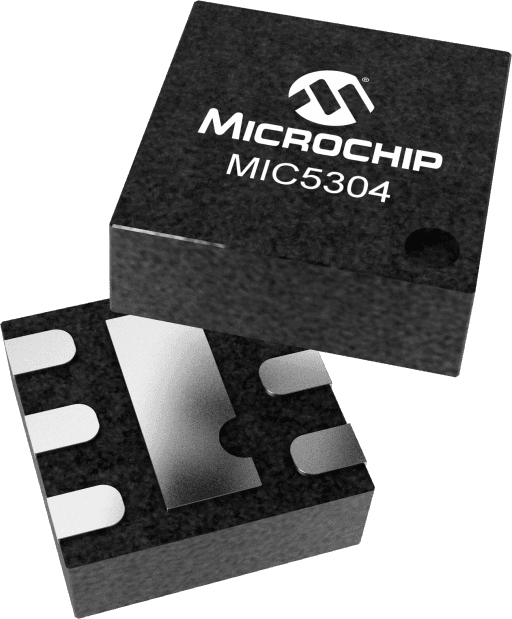

Microchip MIC5304-XGHYMT-TR

Manufacturer No:

MIC5304-XGHYMT-TR

Manufacturer:

Microchip

Package:

6-UFDFN Exposed Pad, 6-TMLF®

Description:

Single 150mA Low Iq LDO with Vselect

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5304-XGHYMT-TR information

Microchip MIC5304-XGHYMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5304-XGHYMT-TR.

Type
Parameter

VIN Min (V) V (volt)
2.3

VIN Max V (volt)
5.5

VOUT V (volt)
3.15/1.85, 3.15/1.875, 3.2/1.8

IOUT #1 Max mA (milliampere)
150

Rated IOUT Max mA (milliampere)
150

Quiescent Current µA (microampere)
24

Voltage Drop Typ (mV)
85

Accuracy (+/-) %
2

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5304-XGHYMT-TR.

Data Sheets:

1fa1ebe87072117fc7897825f7324f73.pdf

The MIC5304 is a low quiescent current, low dropout regulator with selectable output voltage designed for applications that require two levels of output voltage regulation. The MIC5304 is an ideal solution for programming memory cards as well as for conserving power in portable applications. The MIC5304 is capable of sourcing 150mA of output current while only consuming 24µA of operating current. This high performance LDO offers fast transient response while still maintaining low quiescent current levels.

The MIC5304 is an ideal solution for battery-operated applications due to ultra-low operating current and extremely low dropout voltage of 85mV at 150mA. Equipped with a TTL logic-compatible enable pin, the MIC5304 can be put into a zero off-mode current state, drawing virtually no current when disabled.

Board space and component cost is minimized because the MIC5304 operates with very small 1µF ceramic capacitors.

The MIC5304 also features thermal shutdown and current limit protection.

150mA output current
Logic-controlled selectable output voltage
Fast transition time between selected output voltages
Input voltage range: 2.3V to 5.5V
Low 24µA operating current
Stable with 1µF ceramic capacitors
Low dropout voltage: 85mV at 150mA
Thermal shutdown and current limit protection
