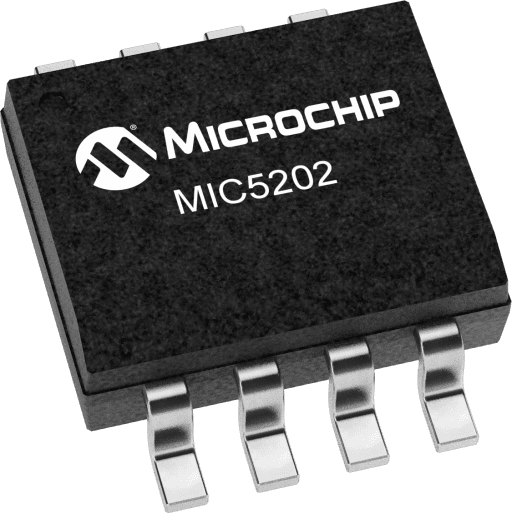

Microchip MIC5202-5.0YM-TR

Manufacturer No:

MIC5202-5.0YM-TR

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Dual 100mA, 1% LDO Regulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5202-5.0YM-TR information

Microchip MIC5202-5.0YM-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5202-5.0YM-TR.

Type
Parameter

VIN Min (V) V (volt)
2.5

VIN Max V (volt)
26

VOUT V (volt)
3.0/3.0, 3.3/3.3, 4.8/4.8, 5.0/5.0

IOUT #1 Max mA (milliampere)
100

IOUT #2 Max mA (milliampere)
100

Quiescent Current µA (microampere)
170

Voltage Drop Typ (mV)
225

Accuracy (+/-) %
2

Adjustable VOUT
No

Reverse Battery
Yes

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5202-5.0YM-TR.

Data Sheets:

b13a2c209f6124887742387f709925f7.pdf

The MIC5202 is a dual linear voltage regulator with low dropout voltage (typically 17mV at light loads and 210mV at 100mA), and low ground current (1mA at 100mA per output). Ideal for battery-operated applications, the MIC5202 offers 1% output voltage accuracy and dual enable pins. The enable pins may be driven individually or tied directly to V_IN. When the part is disabled, power consumption drops to nearly zero. The MIC5202 ground current increases slightly in dropout, which minimizes power consumption and increases battery life. Some key features include reversed battery protection, current limit, and overtemperature protection.

The MIC5202 is available in fixed output voltages in the small 8-pin SOIC package.

High output voltage accuracy
Variety of output voltages
Up to 100mA of continuous output current
Low ground current
Low dropout voltage
Excellent line and load regulations
Extremely low temperature coefficient
Current and thermal limit protections
Reverse-battery protection
Zero off-mode current
Logic-controlled electronic shutdown
8-pin SOIC package
