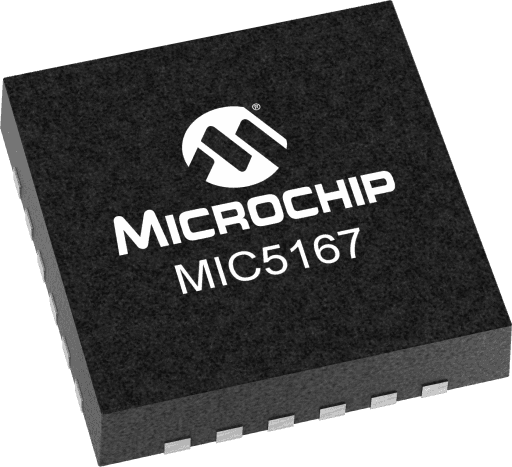

Microchip MIC5167YML-TR

Manufacturer No:

MIC5167YML-TR

Manufacturer:

Microchip

Package:

24-VFQFN Exposed Pad, 24-MLF®

Description:

1MHz, 6A Integrated Synchronous Buck DDR Memory Terminator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5167YML-TR information

Microchip MIC5167YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5167YML-TR.

Type
Parameter

Switching
Yes

MAX IOUT (A)
±6

VIN Min (V) V (volt)
2.6

VIN Max V (volt)
5.5

VOUT (V)
Adj down to 0.35V

PWR Good
Yes

VTT Accuracy (mV)
±12

Freq (MHz)
1

Ceramic Cout (µCaP)
Yes

llim Typ (A)
9

llim Max (A)
14

VEN (V)
1.34

Oja (C/W)
40

Download datasheets and manufacturer documentation for Microchip MIC5167YML-TR.

Data Sheets:

7441fa9e8fc7e3957b348656d7000af4.pdf

The MIC5167 is a high-efficiency, 6A, integrated switch, synchronous buck (step-down) regulator designed for use as a double data rata (DDR) or quad data rate (QDR) terminator. The MIC5167 is optimized for highest efficiency, achieving more than 94% efficiency while still switching at 1MHz over a broad range. The device works with a small 0.4µH inductor and 300µF output capacitor. The ultra-high speed control loop keeps the output voltage within regulation even under extreme transient load swings commonly found in FPGAs and low-voltage ASICs. The output voltage is controlled externally by input to the VDDQ pin. The output voltage is one-half the voltage applied to the VDDQ pin. The output voltage can be adjusted down to 0.6V to address low voltage power needs. The MIC5167 will source 6A and sink up to 6A. A window comparator monitors the output voltage and controls the power good output. If the output voltage is outside ±15% limit of VREF the power good is driven low.

Input voltage range: 2.6V to 5.5V
VTT voltage adjustable down to 0.35V
Output load current up to ±6A
Power Good fault flag
Efficiency > 94% across a broad load range
Ultra fast transient response
Easy RC compensation +C36
100% maximum duty cycle
Fully integrated MOSFET switches
Micropower shutdown
Thermal shutdown and current-limit protection
-40°C to +125°C junction temperature range
