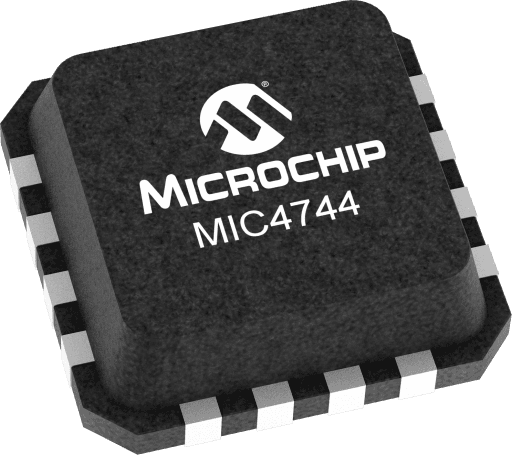

Microchip MIC4744YTSE

Manufacturer No:

MIC4744YTSE

Manufacturer:

Microchip

Package:

16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

4 MHz Dual 2A Integrated Switch Buck Regulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC4744YTSE information

Microchip MIC4744YTSE technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC4744YTSE.

Type
Parameter

Target Application
Modem,Automotive Radio,PC Peripherals,FPGA,General

# of Regulated Outputs (Bucks)
2

# of Regulated Outputs (Linear)
0

VIN Min V (volt)
2.9

VIN Max V (volt)
5.5

Max Duty Cycle (%)
100

PowerFeatures
Enable / Shutdown,PWM,100% Duty Cycle,Current Limit,Thermal Shutdown,Configurable Vout

Download datasheets and manufacturer documentation for Microchip MIC4744YTSE.

Data Sheets:

0cba12f5e94f1b35ad275ab6a698cb99.pdf

The MIC4744 is a high efficiency dual PWM buck (step-down) regulator that provides dual 2A current output. The MIC4744 operates at 4MHz. A proprietary internal compensation technique allows a closed loop bandwidth of over 200kHz.

The low on-resistance internal P-Channel MOSFET of the MIC4744 allows efficiencies over 90%, reduces external components count and eliminates the need for an expensive current sense resistor.

The MIC4744 operates from 2.9V to 5.5V input and the output can be adjusted down to 0.6V. The device can operate with a maximum duty cycle of 100% for use in low-dropout conditions.

The MIC4744 is available in ETSSOP-16 packages with junction operating temperature ranging from -40°C to +125°C.

2.9V to 5.5V supply voltage
4MHz PWM mode
2A Dual output
Greater than 90% efficiency
100% maximum duty cycle
Output voltage adjustable down to 0.6V
Ultra-fast transient response
Ultra-small external components Stable with a 0.47µH inductor and a 10µF output capacitor
Fully integrated 2A MOSFET switches
Micro-power shutdown
Thermal shutdown and current limit protection
-40°C to +125°C junction temperature range
