Microchip MIC47053YMT-TR

Manufacturer No:

MIC47053YMT-TR

Manufacturer:

Microchip

Package:

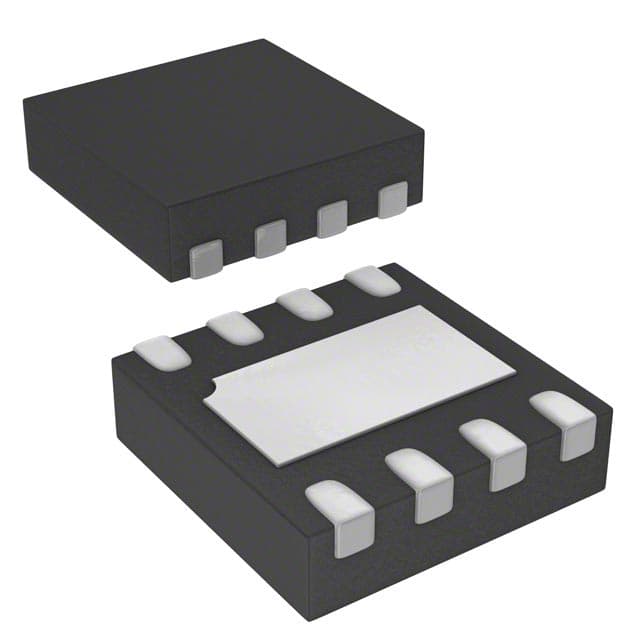

8-UFDFN Exposed Pad

Description:

500mA Adjustable Micropower ULDO, Linear Regulator with Power Good

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC47053YMT-TR information

Microchip MIC47053YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC47053YMT-TR.

Type
Parameter

VIN Min (V) V (volt)
1

VIN Max V (volt)
3.6

IOUT #1 Max mA (milliampere)
500

Rated IOUT Max mA (milliampere)
500

Quiescent Current µA (microampere)
0.1

Voltage Drop Typ (mV)
49

Accuracy (+/-) %
2

Adjustable VOUT
Yes

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
Yes

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC47053YMT-TR.

Data Sheets:

00c07b31a018c7a30b4bc9228ad9f72b.pdf

The MIC47053 is a high-speed, adjustable output ultra-low dropout, dual NMOS ULDO™ designed to power point-of-load applications that require a low-voltage, high-current power supply. The MIC47053 can source 500mA of output current while only requiring a 1µF ceramic output capacitor for stability. The MIC47053 offers ±2% output voltage accuracy over temperature, low dropout voltage (49mV @ 500mA), and low ground current which makes this device ideally suited for mobile and point-of-load applications.

The MIC47053 has an NMOS output stage offering very low output impedance. The NMOS output stage makes for a unique ability to respond very quickly to sudden load changes such as that required by a microprocessor, DSP, or FPGA. The MIC47053 consumes little quiescent current and therefore can be used for driving the core voltages of mobile processors and post regulating a core DC/DC converter in any processor.

The MIC47053 is available in the tiny 2mm x 2mm Thin DFN packages with an operating junction temperature range of -40°C to +125°C.

Input voltage range: 1.0V to 3.6V
Stable with 1µF ceramic output capacitor
Low dropout voltage: 49mV at 500mA
±2% initial output voltage accuracy over temperature
Bias supply voltage range: 2.3V to 5.5V
Adjustable output voltage range down to 0.4V
Logic-level enable input
UVLO on both supply voltages
High bandwidth - very fast transient response
Low shutdown current: 0.1µA typical
Thermally enhanced 2mm x 2mm Thin DFN package
Junction temperature range of -40°C to +125°C
