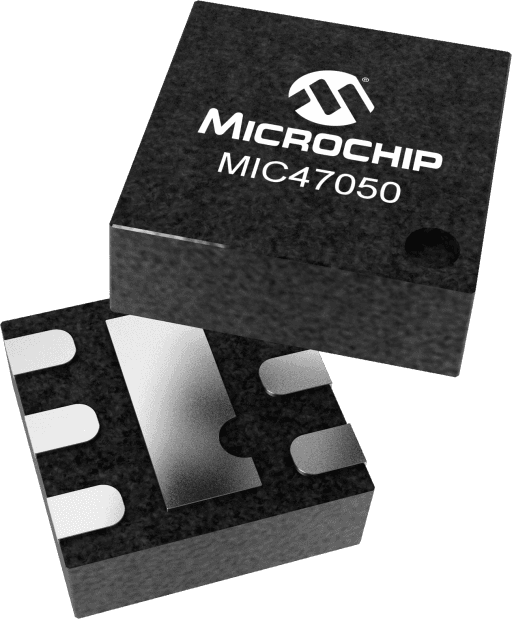

Microchip MIC47050YMT-TR

Manufacturer No:

MIC47050YMT-TR

Manufacturer:

Microchip

Package:

6-UFDFN Exposed Pad, 6-TMLF®

Description:

Low Vin Single 500mA LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC47050YMT-TR information

Microchip MIC47050YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC47050YMT-TR.

Type
Parameter

VIN Min (V) V (volt)
1

VIN Max V (volt)
3.6

VOUT V (volt)
1.2, 1.8

IOUT #1 Max mA (milliampere)
500

Rated IOUT Max mA (milliampere)
500

Quiescent Current µA (microampere)
330

Voltage Drop Typ (mV)
44

Accuracy (+/-) %
2

Adjustable VOUT
Yes

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
Yes

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC47050YMT-TR.

Data Sheets:

33f63b567560dfb1a153d234d1bca2fd.pdf

Application Notes:

869a2286e0bf45f82007ab307f831e2d.pdf

The MIC47050 is a high-speed, ultra-low dropout, dual-supply NMOS ULDO™ designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47050 can source 500mA of output current while only requiring a 1µF ceramic output capacitor for stability. A 1.5% output voltage accuracy, low dropout voltage (44mV at 500mA), and low ground current makes this device ideally suited for mobile and point-of-load applications.

The MIC47050 has an NMOS output stage offering very low output impedance. The NMOS output stage makes for a unique ability to respond very quickly to sudden load changes such as those required by a microprocessor, DSP or FPGA. The MIC47050 consumes little quiescent current and can be used for driving the core voltages of mobile processors, post regulating a core DC/DC converter in any processor.

The MIC47050 operates over a junction temperature range of -40°C to +125°C.

The MIC47050 now offers automotive grade 1. AEC-Q100 and PPAP capable.

AEC-Q100 and PPAP Capable
Input voltage range: 1.0V to 3.6V
Stable with 1µF ceramic output capacitor
Low dropout voltage ULDO™: 44mV at 500mA
±1.5% initial output voltage accuracy
Bias supply voltage range: 2.3V to 5.5V
Adjustable output voltage range: 0.4V to 2.0V
Logic-level enable input
400mA maximum output current per LDO
Very fast transient response
UVLO on both supply packages
Junction temperature range of -40°C to +125°C
