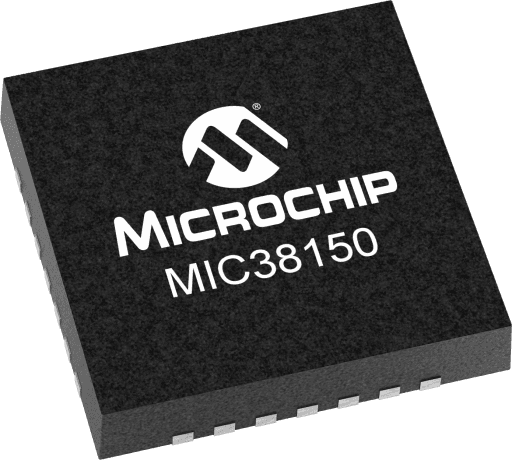

Microchip MIC38150HYHL-TR

Manufacturer No:

MIC38150HYHL-TR

Manufacturer:

Microchip

Package:

28-PowerVFQFN Module, 28-MLF®

Description:

1.5A Ultra Low Noise Power Module (HELDO)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC38150HYHL-TR information

Microchip MIC38150HYHL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC38150HYHL-TR.

Type
Parameter

Driver Type
Step Down (Buck)

VIN Min V
3

VIN Max V
5.5

Adjustable
Yes

Temp Range Min °C (degrees Celsius)
-40

Temp Range Max °C (degrees Celsius)
125

Control Mode
COT

HyperLight Load®
Yes

Hyper Speed Control®
Yes

LowQ®
No

Output Current
1.5

Output Voltage (V)
1 minimum

PWR Good
Yes

Soft Start
Yes

VOUT Max V (volt)
3.8

Download datasheets and manufacturer documentation for Microchip MIC38150HYHL-TR.

Data Sheets:

6c7b862a9bbfce7e3f41762a46629757.pdf

The MIC38150 is a 1.5A continuous output current step down converter. This is a follow on product in the new High Efficiency Low DropOut Regulators (HELDO^®) family, that provide the benefits of an LDO with respect to ease of use, fast transient performance, high PSRR and low noise while offering the efficiency of a switching regulator.

As output voltages move lower, the output noise and transient response of a switching regulator become an increasing challenge for designers. By combining a switcher whose output is slaved to the input of a high performance LDO, high efficiency is achieved with a clean low noise output. The MIC38150 is designed to provide less than 5mV of peak-to-peak noise and over 70dB of PSRR at 1kHz. Furthermore, the architecture of the MIC38150 is optimized for fast load transients allowing the output to maintain less than 30mV of output voltage deviation even during ultra fast load steps. This makes the MIC38150 an ideal choice for low voltage ASICs and other digital ICs.

The MIC38150 features a fully integrated switching regulator and LDO combination, operates with input voltages from 3.0V to 5.5V input and offers adjustable output voltages down to 1.0V.

Output current up to 1.5A
Input voltage range: 3.0V to 5.5V
Adjustable output voltage down to 1.0V
Output noise less than 5mV
Ultra fast transient performance
Unique switcher plus LDO architecture
Fully integrated MOSFET switches
Micro-power shutdown
Easy upgrade from LDO as power dissipation becomes an issue
Thermal shutdown and current limit protection
