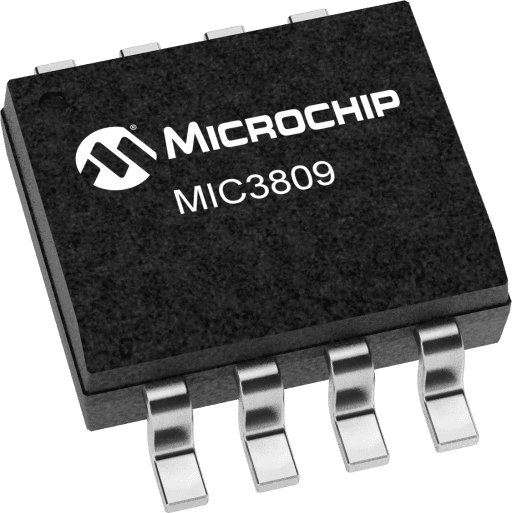

Microchip MIC3809YM

Manufacturer No:

MIC3809YM

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Push-Pull DC/DC Controller

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC3809YM information

Microchip MIC3809YM technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC3809YM.

Type
Parameter

Current Limit / Short Circuit Protection
Yes

Max Duty Cycle (%)
0.49

Input UVLO Typ (V)
4.3

Internal Voltage Bias
Yes

Input Voltage Max
15

Input Voltage Min
4.1

Operating Supply Current (mA)
1

Package
8/SOP, 8/MSOP

Soft Start
1

Supported Outputs
1

Supported Topologies
Push-Pull, Half Bridge, Full Bridge

Download datasheets and manufacturer documentation for Microchip MIC3809YM.

Data Sheets:

d0455cdfd7c577bf4bc5778a6318a4c6.pdf

The MIC3808 and MIC3809 are a family of complementary output push-pull PWM control ICs that feature high speed and low power consumption. The MIC3808/9 are ideal for telecom level (36V to 75V) isolated step down DC/DC conversion applications where high output current, small size, and high efficiency are required. The dual-ended push-pull architecture of the MIC3808/9 allows more efficient utilization of the transformer than single-ended topologies, allowing smaller size DC/DC solutions. Additionally, the out-of-phase push-pull topology allows a higher effective duty cycle, reducing input and output ripple as well as stress on the external components. The dead-time between the two outputs is adjustable between 60ns to 200ns, limiting the duty cycle of each output stage to less than 50%. The MIC3808/9 are built on a low-power, high-speed BiCMOS process. The 130µA start-up current and 1mA run-current reduce the size of the start-up circuitry and allow high efficiency even at light loads. The high-speed internal 4MHz error amplifier allows MIC3808/9 operation up to 1MHz. The MIC3808 has a turn-on threshold of 12.5V whereas the MIC3809 has a lower turn-on threshold of 4.3V. Both devices are available in SOP-8 and MSOP-8 package options with an operating range of -40°C to +85°C.

Dual output drive stages in push-pull configuration
Leading edge current-sense blanking
130µA typical start-up current
1mA typical run current
Operation to 1MHz
Internal soft start
On-chip error amplifier with 4MHz gain bandwidth product
On-chip VDD clamping
Output drive stages capable of 500mA peak source current, 1A peak sink current
