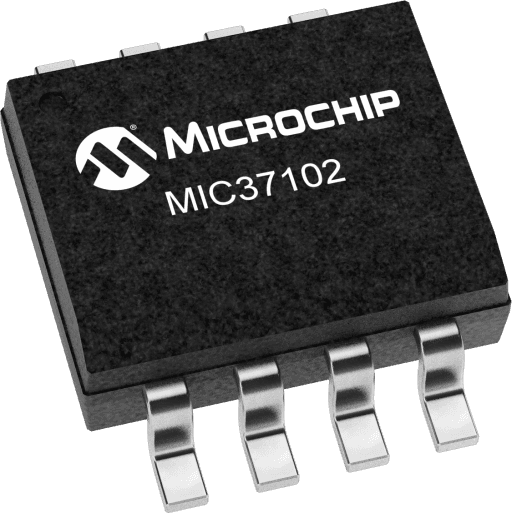

Microchip MIC37102WR

Manufacturer No:

MIC37102WR

Manufacturer:

Microchip

Package:

SPak-5 (5 leads + Tab)

Description:

1.0A Low Voltage ADJ. uCap LDO Regulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC37102WR information

Microchip MIC37102WR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC37102WR.

Type
Parameter

VIN Min (V) V (volt)
2.25

VIN Max V (volt)
6

IOUT #1 Max mA (milliampere)
1000

Rated IOUT Max mA (milliampere)
1000

Quiescent Current µA (microampere)
650

Voltage Drop Typ (mV)
280

Accuracy (+/-) %
2

Adjustable VOUT
Yes

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC37102WR.

Data Sheets:

14a5ea9f80586d9bcd0a58ffd825e98e.pdf

The MIC37100, MIC37101, and MIC37102 are 1A low dropout, linear voltage regulators that provide low-voltage, high-current output from an extremely small package. Utilizing proprietary Super βeta PNP^® pass element, the MIC37100/01/02 offers extremely low dropout (typically 280mV at 1A) and low ground current (typically 11mA at 1A).

The MIC37100 is a fixed output regulator offered in the SOT-223 package. The MIC37101 and MIC37102 are fixed and adjustable regulators, respectively, in a thermally enhanced power 8-pin SOIC (small outline package) and the SOT-223 package. The MIC37102 is also available in the S-PAK power package for applications that require higher power dissipation or higher operating ambient temperatures.

The MIC37100/01/02 is ideal for PC add-in cards that need to convert from standard 5V to 3.3V, 3.3V to 2.5V, or 2.5V to 1.8V or lower. A guaranteed maximum dropout voltage of 500mV over all operating conditions allows the MIC37100/01/02 to provide 2.5V from a supply as low as 3V and 1.8V from a supply as low as 2.3V.

The MIC37100/01/02 is fully protected with overcurrent limiting and thermal shutdown. Fixed output voltages of 1.5V, 1.65V, 1.8V, 2.5V, and 3.3V are available on MIC37100/01 with adjustable output voltages to 1.24V on MIC37102.

Fixed and adjustable output voltages to 1.24V
µCap Regulator, 10µF ceramic output capacitor stable
Ideal for 3.0V to 2.5V conversion
Ideal for 2.5V to 1.8V, 1.65V, or 1.5V conversion
1A minimum guaranteed output current
1% initial accuracy
Low ground current
Current limiting and thermal shutdown
Reverse leakage protection
Fast transient response
Low-profile SOT-223 package
Power SOIC-8 package
S-PAK package (MIC37102 only)
