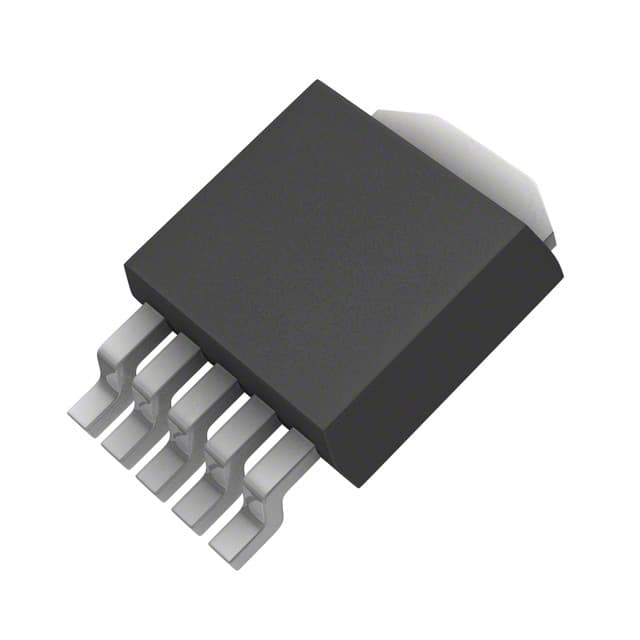

Microchip MIC29302AWD-TR

Manufacturer No:

MIC29302AWD-TR

Manufacturer:

Microchip

Package:

TO-252-6, DPak (5 Leads + Tab)

Description:

3A Fast-Response LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC29302AWD-TR information

Microchip MIC29302AWD-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC29302AWD-TR.

Type
Parameter

VIN Min (V) V (volt)
3

VIN Max V (volt)
16

IOUT #1 Max mA (milliampere)
3000

Rated IOUT Max mA (milliampere)
3000

Voltage Drop Typ (mV)
560

Accuracy (+/-) %
2

Adjustable VOUT
Yes

Reverse Battery
Yes

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC29302AWD-TR.

Application Notes:

21f3ad0d8d47bb4decbf4d02478b0510.pdf

715189641d74dc6b77137d2a5ab3e528.pdf

Data Sheets:

389f2ed6064a8043a5bebb190b173b74.pdf

The MIC29302A is a high-current, low-cost, low-dropout voltage regulator which uses proprietary Super βeta PNP^® process with a PNP pass element. The 3A LDO regulator features 450mV (full load) dropout voltage and very low ground current. Designed for high-current loads, these devices also find applications in lower current, low dropout-critical systems, where their dropout voltage and ground current values are important attributes.

Along with a total accuracy of ±2% (over temperature, line and load regulation) the regulator features very-fast transient recovery from input voltage surges and output load current changes.

The MIC29302A has an adjustable output which can be set by two external resistors to a voltage between 1.24V to 15V. In addition, the device is fully protected against over current faults, reversed input polarity, reversed lead insertion, and overtemperature operation. A TTL logic enable (EN) pin is available in the MIC29302A to shutdown the regulator. When not used, the device can be set to continuous operation by connecting EN to the input (IN). The MIC29302A is available in the standard and 5-pin TO-263 and TO-252 packages with an operating junction temperature range of -40°C to +125°C.

High current capability: 3A over full temperature range
Low dropout voltage of 450mV at full load
Low ground current
Accurate 1% guaranteed tolerance
Extremely fast transient response
Zero-current shutdown mode
Error flag signals output out-of-regulation
Adujstable output voltage
Available in TO-263-L and TO-252-5L packages
