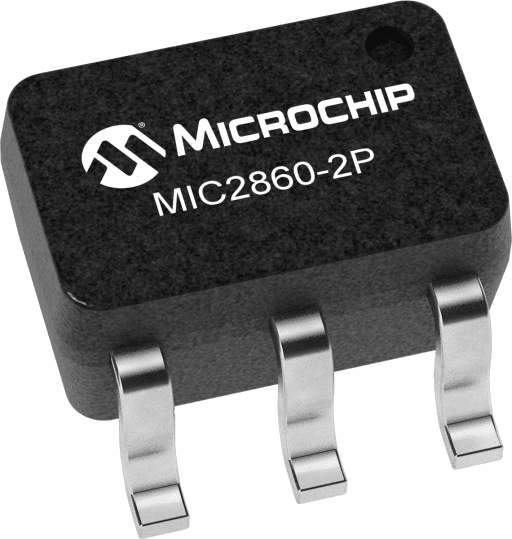

Microchip MIC2860-2PYC6-TR

Manufacturer No:

MIC2860-2PYC6-TR

Manufacturer:

Microchip

Package:

6-TSSOP, SC-88, SOT-363

Description:

2 Channel Linear WLED Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2860-2PYC6-TR information

Microchip MIC2860-2PYC6-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2860-2PYC6-TR.

Type
Parameter

Topology
Linear

+Vin min (V)
3

+Vin max (V)
5.5

Dimming
PWM

Package
SC70, TSOT

Product Type
Linear LED Drivers

# of White LEDs
2 @ 30.2mA

Operating Iq (µA)
0.7

Vfb (V)
0

ILED Matching
±0.5%

Oja (C/W)
256, 177

Vdropout @ 20mA
52mV @ 30.2mA

Extra LDOs
0

Vdropout (mV)
0

IQ LDO
0

Download datasheets and manufacturer documentation for Microchip MIC2860-2PYC6-TR.

Data Sheets:

66a20885114c7c36e28d947e96a92a04.pdf

The MIC2860-2P is a high-efficiency white LED (WLED) driver designed to drive two WLEDs and greatly extend battery life for portable display backlighting and keypad backlighting in low cost mobile devices. The MIC2860-2P architecture provides the highest possible efficiency by eliminating switching losses present in traditional charge pumps or inductive boost circuits. It features a typical dropout of 52mV at 30.2mA per channel. This allows the WLEDs to be driven directly from the battery eliminating switching noise and losses present with the use of boost circuitry.

The two channels have typical matching of ±0.5%, which helps ensure uniform display illumination under all conditions. The WLEDs brightness is externally preset by a resistor and dimmed using PWM interface operating down to less than 1% duty cycle.

The MIC2860-2P is available in Thin SOT-23 and SC-70 6-pin packages with a junction temperature range of -40°C to +125°C.

High efficiency (no switching losses)
PWM frequency as low as 250Hz
Input voltage range: 3.0V to 5.5V
Linear driver dropout of 52mV at 30.2mA
Matching better than ±0.5% (typical)
Current accuracy better than 1.0% (typical)
Available in Thin SOT-23 and SC-70 packages
