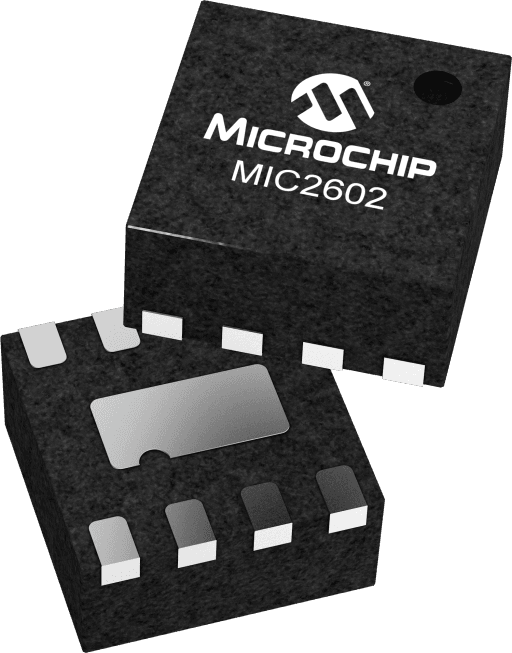

Microchip MIC2602YML-TR

Manufacturer No:

MIC2602YML-TR

Manufacturer:

Microchip

Package:

8-VFDFN Exposed Pad, 8-MLF®

Description:

1.2A 2 MHz Wide Input Range Boost Regulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2602YML-TR information

Microchip MIC2602YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2602YML-TR.

Type
Parameter

Max Duty Cycle (%)
80

Input Voltage Range Max
20

Input Voltage Range Min
4.5

# of Outputs
1

Output Current
1200

Driver Type
Boost

Quiescent Current
4.2

Synchronous Rectifier
No

Temp Range Max °C (degrees Celsius)
125

Temp Range Min
-40

Vout Max
40

Vfb V (volt)
1.26

VoutMin
5

Vref (V)
1.25

Download datasheets and manufacturer documentation for Microchip MIC2602YML-TR.

Data Sheets:

eea75aa354d3d2ac5b7aa2d30e951f98.pdf

The MIC2601/2 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2601/2's internal 40V/1.2A switch, allowing it to power large loads in a tiny footprint.

The MIC2601/2 implements constant frequency 1.2MHz/2MHz PWM current mode control. The MIC2601/2 offers internal compensation that provides excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM scheme also reduces spurious switching noise and ripple to the input power source.

Soft start reduces in rush current and is programmable via external capacitor..

The MIC2601/2 has an operating junction temperature range of -40°C to +125°C.

Wide input voltage range: 4.5V to 20V
Output voltage adjustable to 40V
1.2A(min) / 1.7A(typ) switch current
MIC2601 operates at 1.2MHz
MIC2602 operates at 2MHz
Stable with small size ceramic capacitors
High efficiency
Programmable soft start
<10 µA shutdown current
UVLO
Output over-voltage protection
Over temperature shutdown
-40°C to +125°C junction temperature range
