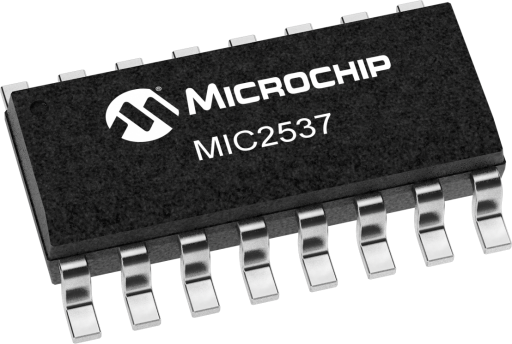

Microchip MIC2537-2YM

Manufacturer No:

MIC2537-2YM

Manufacturer:

Microchip

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

Quad USB Switch

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2537-2YM information

Microchip MIC2537-2YM technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2537-2YM.

Type
Parameter

Driver Type
USB Power Dist

Type
Quad

Vin Min (V)
2.7

Vin Max (V)
5.5

Current Limit Fixed (Min)
100mA

Current Limited
Yes

RDS ON @5V (mO)
425

Enable Logic
Active High

Oja (C/W)
120

Rev Block Diode
Yes

Thermal Shutdown
Yes

Fault Flag
Yes

UL Approved
Yes

Switch Element
N-Ch

Download datasheets and manufacturer documentation for Microchip MIC2537-2YM.

Application Notes:

55369d38ee07c8113946dcca4ff095a6.pdf

ff35b65cb6cdd4d9c40ad675207afb27.pdf

Data Sheets:

b4be2a5424e72ba381dd7b7be85e15be.pdf

The MIC2537 is a cost-effective high-side power switch with four independently controlled channels, optimized for buspowered Universal Serial Bus (USB) applications. Few external components are necessary to satisfy USB requirements. The MIC2537 satisfies the following USB requirements: each switch channel supplies up to 100mA as required by USB bus-powered downstream devices; fault current is limited to typically 250mA, well below the UL 25VA safety requirements; and a flag output is available to indicate fault conditions to the local USB controller. Soft start eliminates the momentary voltage drop on the upstream port that may occur when the switch is enabled in bus-powered applications. Additional features include thermal shutdown to prevent catastrophic switch failure from high-current loads and 3.3V and 5V logic compatible enable inputs. The MIC2537 is available in active-high and active-low versions in a 16-lead SOP package.

Compliant to USB specifications
3V to 5.5V input
100mA minimum continuous load current per port
425mO typical on-resistance
< 400mA current limit
Individual open-drain fault flag leads
3V/5V-compatible enable inputs
Active-high (-1) and active-low (-2) versions
100µA max. on-state supply current
<1µA typical off-state supply current
16-lead SOP package
-40°C to 85°C operation
UL recognized
