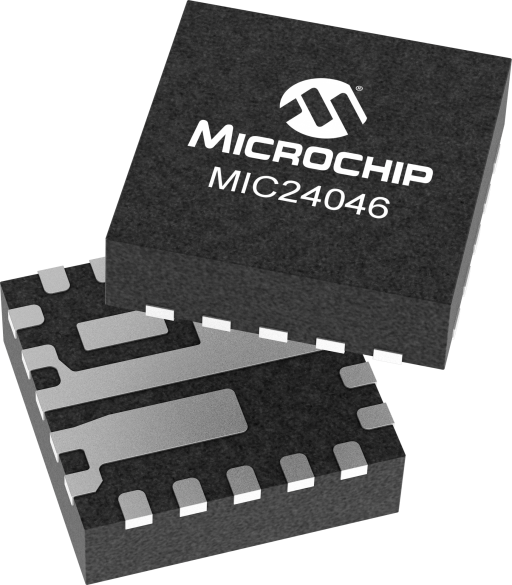

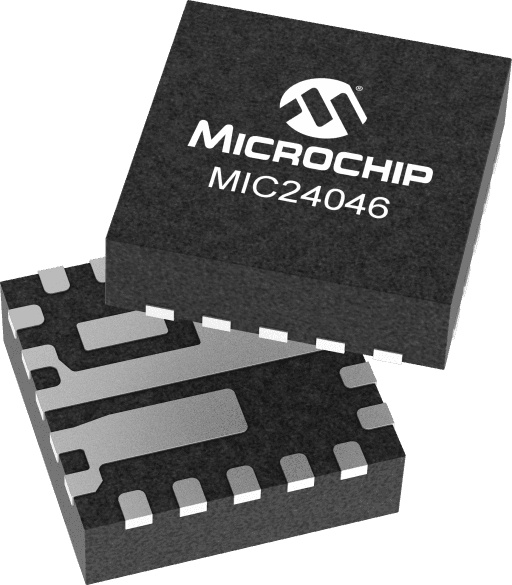

Microchip MIC24046YFL-TR

Manufacturer No:

MIC24046YFL-TR

Manufacturer:

Microchip

Package:

20-PowerVFQFN

Description:

4.5V-19V Input, 5A Step-Down Converter

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC24046YFL-TR information

Microchip MIC24046YFL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC24046YFL-TR.

Type
Parameter

Input Voltage Range Max V (volt)
19

Input Voltage Range Min V (volt)
4.5

# of Outputs
1

Output Current
5000

Driver Type
Buck

Quiescent Current µA (microampere)
5.6

Synchronous Rectifier
Yes

Temp Range Max °C (degrees Celsius)
125

Temp Range Min °C (degrees Celsius)
-40

VOUT Max V (volt)
3.3

VOUT Min V (volt)
0.7

Vref (V)
0

Download datasheets and manufacturer documentation for Microchip MIC24046YFL-TR.

Data Sheets:

044cd590a00116be921cd428e5779d65.pdf

Application Notes:

e6e375757f54c05dd16386914983f979.pdf

MIC24046 is a pin-programmable, high-efficiency, wide-input range, 5A, synchronous step-down regulator. The MIC24046 is perfectly suited for multiple-voltage rail application environments typically found in computing and telecommunication systems. It can be programmed by pin strapping various parameters, such as output voltage, switching frequency, and current-limit values. The pin-selectable switching frequency, valley-current-mode control technique, high-performance error amplifier, and external compensation allow for the best tradeoffs between high-efficiency and the smallest possible solution size.

The MIC24046 is pin-out compatible with its I²C-programmable counterparts from the same family. The MIC24046 is available in a thermally-efficient, space-saving, 20-pin 3mm x 3mm QFN package with an operating junction temperature range of -40°C to +125°C.

4.5V to 19V input voltage range
5A (maximum) output current
High efficiency (>90%)
Pin-selectable output voltages:
0.7V, 0.8V, 0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V
±1% output voltage accuracy
Supports safe start-up with pre-biased output
Pin-selectable current limit and switching frequency
Internal soft-start and thermal shutdown protection
Hiccup-mode short-circuit protection
Available in a 20-pin 3mm x 3mm QFN package
-40°C to +125°C junction temperature range
