Microchip MIC23031-AYMT-TR

Manufacturer No:

MIC23031-AYMT-TR

Manufacturer:

Microchip

Package:

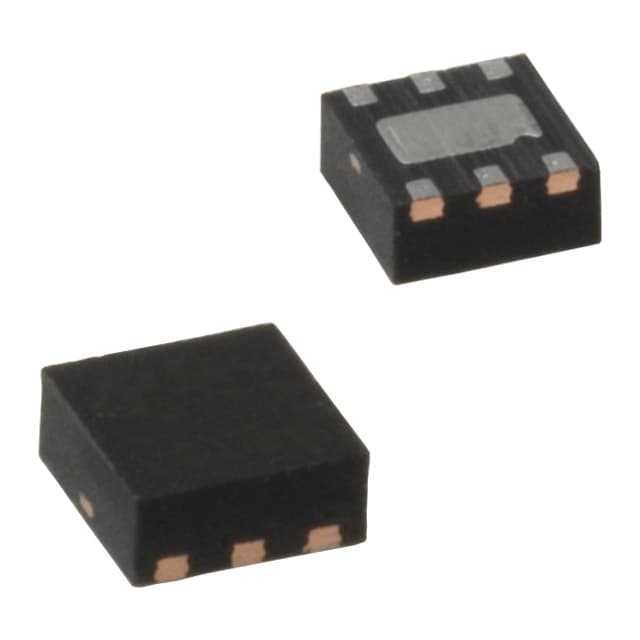

6-UFDFN Exposed Pad, 6-TMLF®

Description:

4MHz 400mA Hyper Light Load, Buck Regulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC23031-AYMT-TR information

Microchip MIC23031-AYMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC23031-AYMT-TR.

Type
Parameter

Max Duty Cycle (%)
80.0

Input Voltage Range Max
5.5

Input Voltage Range Min
2.7

# of Outputs
1

Output Current
400

Driver Type
Buck

Quiescent Current
0.021

Synchronous Rectifier
Yes

Temp Range Max °C (degrees Celsius)
125

Temp Range Min
-40

Vfb V (volt)
0.62

Vout Min
0.62

Vref (V)
0

Download datasheets and manufacturer documentation for Microchip MIC23031-AYMT-TR.

The MIC23031 is a high efficiency 4MHz 400mA synchronous buck regulator with HyperLight Load^® mode. HyperLight Load^® provides very high efficiency at light loads and ultra-fast transient response which is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors.

The MIC23031 is designed for use with a very small inductor, down to 0.47µH, and an output capacitor as small as 2.2 µF that enables a sub-1mm height.

The MIC23031 has a very low quiescent current of 21µA and achieves as high as 88% efficiency at 1mA. At higher loads, the MIC23031 provides a constant switching frequency around 4MHz while achieving peak efficiencies up to 93%.

Input voltage range: 2.7V to 5.5V
400mA output current
Up to 93% efficiency and 88% at 1mA
21µA typical quiescent current
4MHz PWM operation in continuous mode
Ultra fast transient response
Low voltage output ripple
0.01µA shutdown current
Fixed and adjustable output voltage options available
-40°C to +125°C junction temperature range
