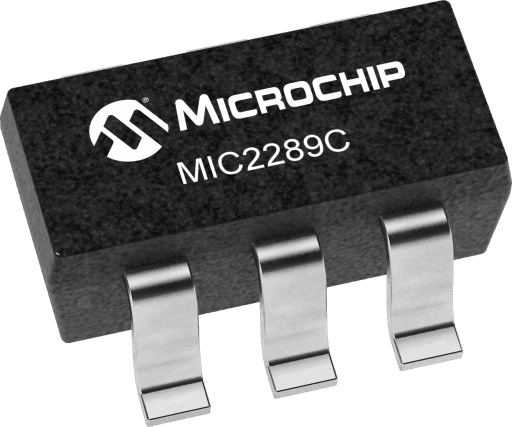

Microchip MIC2289C-34YD6-TR

Manufacturer No:

MIC2289C-34YD6-TR

Manufacturer:

Microchip

Package:

SOT-23-6 Thin, TSOT-23-6

Description:

White LED Driver Internal Schottky Diode and OVP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2289C-34YD6-TR information

Microchip MIC2289C-34YD6-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2289C-34YD6-TR.

Type
Parameter

Topology
Boost

+Vin min (V)
2.5

+Vin max (V)
10

Output Current
2A BJT

Dimming
PWM / Analog

Package
TSOT

Product Type
LED Backlight

VOUT
34

llim Typ (A)
0.75

llim Max (A)
0

lq Typ
2.5mA

Int Diode
Yes

Vfb (V)
0.095

Tol Typ %
±10

Duty Cycle Max
0.9

Freq (Hz)
1.2M

VEN (V)
1.5

Soft Start
Yes

UVLO Typ (V)
2.1

Ceramic Cap
Yes

Oja (C/W)
177

Download datasheets and manufacturer documentation for Microchip MIC2289C-34YD6-TR.

Data Sheets:

a4815e82d3029b6ca1592a0d0c0a3962.pdf

The MIC2289C is a pulse-width modulated (PWM), boost-switching regulator that is optimized for constant-current white LED driver applications. The MIC2289C features an internal Schottky diode and three levels of output overvoltage protection providing a small size and efficient DC/DC solution that requires only four external components.

To optimize efficiency, the feedback voltage is set to only 95mV. This reduces power dissipation in the current set resistor and allows the lowest total output voltage, hence minimal current draw from the battery.

The MIC2289C implements a constant frequency 1.2MHz PWM control scheme. The high frequency, PWM operation saves board space by reducing external component sizes. The added benefit of the constant frequency PWM scheme in caparison to variable frequency in much lower noise and input ripple injected to the input power source.

The MIC2289C clamps the output voltage in case of open LED conditions, protecting itself and the output capacitor. The MIC2289C is available with an output OVP option of 34V.

The MIC2289C is available in low profile 6-pin Thin SOT-23 package. The MIC2289C has a junction temperature range of -40°C to +125°C.

2.5V to 10V input voltage
Output voltage up to 34V with OVP
Internal Schottky diode
Over 500mA switch current
1.2MHz PWM operation
95mV feedback voltage
<1% line and load regulation
<1µA shutdown current
Over-temperature protection
UVLO
Thin SOT-23 6-pin package
-40°C to +125°C junction temperature range
For higher performance specifications see the MIC2289
