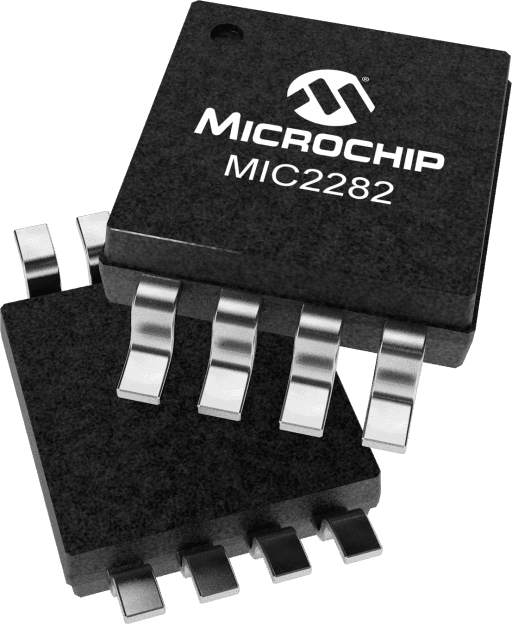

Microchip MIC2282YMM

Manufacturer No:

MIC2282YMM

Manufacturer:

Microchip

Package:

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Description:

Single-Cell Ultra Low EMI Boost LED Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2282YMM information

Microchip MIC2282YMM technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2282YMM.

Type
Parameter

Topology
Boost

+Vin min (V)
0.9

+Vin max (V)
15

Output Current
1A BJT

Package
MSOP

Product Type
LED Backlight

VOUT
36

llim Typ (A)
1.1

llim Max (A)
0

lq Typ
120µA

Vfb (V)
0.22

Tol Typ %
±10

Duty Cycle Max
0.67

Freq (Hz)
20K

VEN (V)
0

Ceramic Cap
Yes

Oja (C/W)
160

Download datasheets and manufacturer documentation for Microchip MIC2282YMM.

Data Sheets:

ee6e2797262d656f4b5ea77d07ead56a.pdf

The MIC2282 is a boost LED driver optimized for single cell operation from alkaline, NiMH, or Li-Ion batteries. The MIC2282 operates with an input voltage between 0.9V to 15V, driving a string of series LEDs up to 33V. The combination of a low feedback voltage of 220mV and an operating current of 120µA provides a high efficiency solution that prolongs battery life.

The MIC2282 requires only five external components (diode, inductor, sense resistor, input capacitor, and output capacitor) to implement a low cost LED boost regulator. It is available in a compact 8-pin MSOP package with an operating range from -40°C to +125°C.

Operates from a single-cell supply (VIN = 0.9V to 15V)
Ultra Low EMI
120µA typical quiescent current
Adjustable output voltages
220mV sense voltage
20kHz switching frequency
Over temperature protection
8-pin MSOP package
Low component count solution
