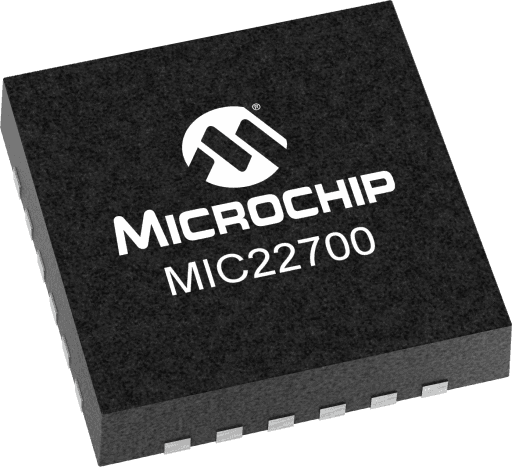

Microchip MIC22700YML-TR
Manufacturer No:
MIC22700YML-TR
Manufacturer:
Microchip
Package:
24-VFQFN Exposed Pad, 24-MLF®
Description:
1MHz 7A Integrated Switch High-Efficiency Synch Buck
Quantity:
In Stock :2103
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC22700YML-TR Information
Microchip MIC22700YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC22700YML-TR.
- Type
- Parameter
- Max Duty Cycle (%)
- 100.0
- Input Voltage Range Max
- 5.5
- Input Voltage Range Min
- 2.6
- # of Outputs
- 1
- Output Current
- 7000
- Driver Type
- Buck
- Quiescent Current
- 0.85
- Synchronous Rectifier
- Yes
- Temp Range Max °C (degrees Celsius)
- 125
- Temp Range Min
- -40
- Type
- Parameter
- Vout Max
- 5.5
- Vfb V (volt)
- 0.7
- VoutMin
- 0.7
- Vref (V)
- 0
Download datasheets and manufacturer documentation for Microchip MIC22700YML-TR.
Data Sheets:
The MIC22700 is a high efficiency, 7A Integrated switch synchronous buck (step-down) regulator. The MIC22700 is optimized for highest efficiency. The device achieves more than 95% efficiency while still switching at 1MHz over a broad range. The device works with a small 1µH inductor and down to 47µF output capacitor. The ultra-high speed control loop keeps the output voltage within regulation even under extreme transient load swings commonly found in FPGAs and low voltage ASICs. The output voltage can be adjusted down to 0.7V to address all low voltage power needs. A full range of sequencing and tracking options is available with the MIC22700. The Enable/Delay pin combined with the Power Good/POR pin allows multiple outputs to be sequenced in any way during turn-on and turn-off. The RC (Ramp Control™) pin allows the device to be connected to another product in the MIC22xxx and/or MIC68xxx family, to keep the output voltages within a certain ∆V on start up.
- Input voltage range: 2.6V to 5.5V
- Output voltage adjustable down to 0.7V
- Output current up to 7A
- Full sequencing and tracking capability
- Power on Reset/Power Good
- Efficiency >95% across a broad load range
- Easy RC compensation
- 100% maximum duty cycle
- Fully integrated MOSFET switches
- Micropower shutdown
- Thermal shutdown and current limit protection
- -40°C to +125°C junction temperature range
