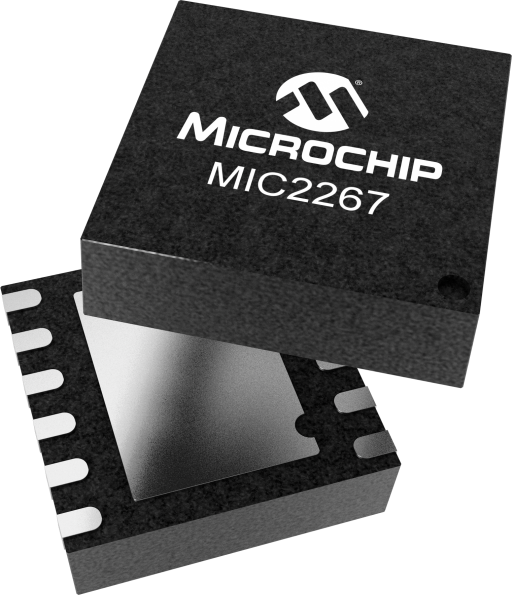

Microchip MIC2267YML-TR
Manufacturer No:
MIC2267YML-TR
Manufacturer:
Package:
12-VFDFN Exposed Pad, 12-MLF®
Description:
USB Power Maximizer
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC2267YML-TR Information
Microchip MIC2267YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2267YML-TR.
- Type
- Parameter
- Max Duty Cycle (%)
- 100.0
- Input Voltage Range Max V (volt)
- 5.5
- Input Voltage Range Min V (volt)
- 3.0
- # of Outputs
- 1
- Output Current
- 2000
- Driver Type
- Buck
- Quiescent Current µA (microampere)
- 1
- Synchronous Rectifier
- Yes
- Temp Range Max °C (degrees Celsius)
- 125
- Temp Range Min °C (degrees Celsius)
- -40
- Type
- Parameter
- VOUT Max V (volt)
- 5.5
- VFB V (volt)
- 1
- VOUT Min V (volt)
- 1.0
Download datasheets and manufacturer documentation for Microchip MIC2267YML-TR.
Data Sheets:
The MIC2267 is a USB Power Maximizer which transfers the maximum power from the limited USB current source by shaping the input current limit profile. It incorporates a high efficiency, integrated synchronous step down regulator. Internal 150mΩ switches and adjustable operating frequency allows the MIC2267 to achieve greater than 90% efficiency across a broad load range. It replaces the USB current limit switch, 5V buck regulator and minimizes capacitance for many USB applications. The adjustable frequency control can be utilized to move harmonics away from sensitive frequency bands.
The MIC2267 allows the input current limit profile to be shaped for various applications. With a current mode control with external compensation, the MIC2267 transient response can be optimized over load and output capacitance making it highly flexible for many applications
Additional features include 1µA shutdown current, output current limit and thermal shutdown protection.
- Input voltage range: 3.0V to 5.5V
- Output voltage adjustable down to 1.0V
- Up to 96% efficiency at 500mA output
- Efficiency <90% across a broad load range
- Fast transient response
- Adjustable frequency from 400kHz to 1.5MHz
- Adjustable input current limiting 100mA to over 1A
- 100% maximum duty cycle
- Fully integrated MOSFET switches
- Micropower shutdown
- Thermal shutdown and output current limit protection
- Junction temperature range: -40°C to +125°C
