Microchip MIC22200YML-TR

Manufacturer No:

MIC22200YML-TR

Manufacturer:

Microchip

Package:

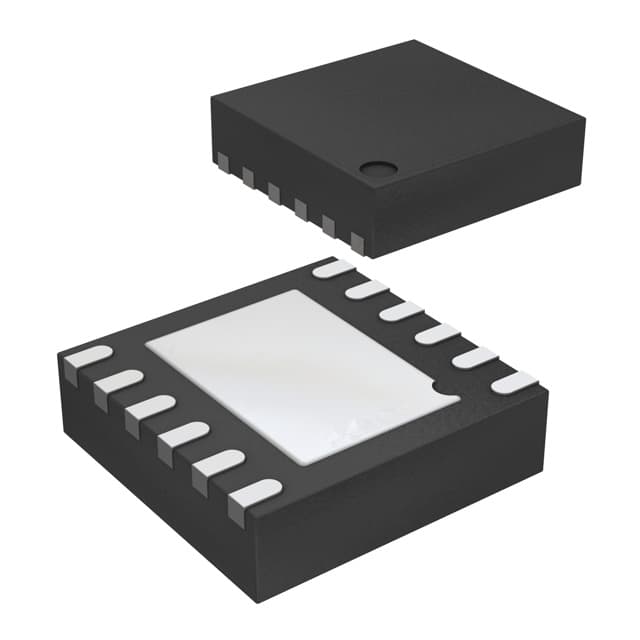

12-VFDFN Exposed Pad, 12-MLF®

Description:

2A Integrated Switch Synchronous Buck Regulator with Frequency Programmable from

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC22200YML-TR information

Microchip MIC22200YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC22200YML-TR.

Type
Parameter

Max Duty Cycle (%)
100.0

Input Voltage Range Max
5.5

Input Voltage Range Min
2.6

# of Outputs
1

Output Current
2000

Driver Type
Buck

Quiescent Current
1.2

Synchronous Rectifier
Yes

Temp Range Max °C (degrees Celsius)
125

Temp Range Min
-40

Vout Max
5.5

Vfb V (volt)
0.7

VoutMin
0.7

Download datasheets and manufacturer documentation for Microchip MIC22200YML-TR.

Data Sheets:

d6e93474f2bf9c7d17e536a6f0cf26d4.pdf

The MIC22200 is a high efficiency, 2A integrated switch synchronous buck (step-down) regulator. The MIC22200 switching frequency is programmable from 800kHz to 4MHz, allowing the customer to optimize their designs either for efficiency or for the smallest footprint. The regulator achieves efficiencies as high as 95% while still switching at 1MHz over a broad load range.

The ultra high speed control loops keep the output voltage within regulation even under the extreme transient load swings commonly found in FPGAs and low-voltage ASICs.

The output voltage can be adjusted down to 0.7V to address all low voltage power needs.

The MIC22200 offers a full range of sequencing and tracking options. The Enable/Delay pin, combined with the Power-On-Reset (POR) pin, allows multiple outputs to be sequenced in many ways during turn on and turn off. The Ramp Control™ (RC) pin allows the device to be connected to another device in the MIC22X00 family of products to keep the output voltages within a certain delta V on start up.

Input voltage range: 2.6V to 5.5V
Adjustable output voltage option down to 0.7V
Output current to 2A
Full sequencing and tracking capability
Easy RC compensation
Power On Reset (POR) output
Efficiency >90% across a broad load range
Operating frequency: Programmable from 800 kHz up to 4MHz
Ultra fast transient response
100% maximum duty cycle
Fully integrated MOSFET switches
Micropower shutdown
Thermal shutdown and current limit protection
-40°C to +125°C junction temperature range

User Guide
