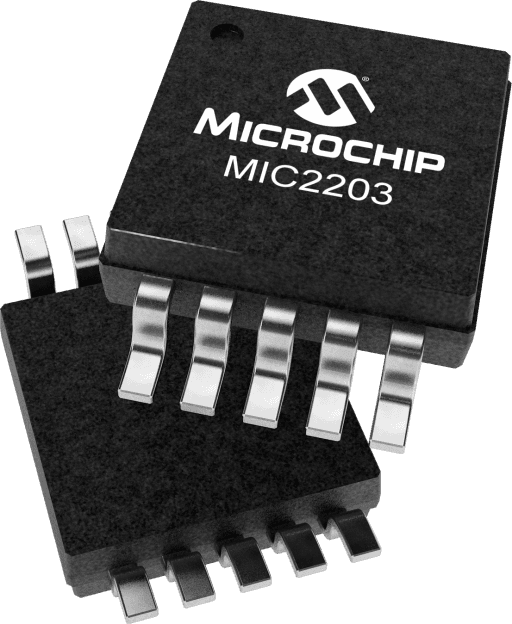

Microchip MIC2203YMM-TR

Manufacturer No:

MIC2203YMM-TR

Manufacturer:

Microchip

Package:

10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Description:

1MHz Synchronous Buck Regulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2203YMM-TR information

Microchip MIC2203YMM-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2203YMM-TR.

Type
Parameter

Max Duty Cycle (%)
100.0

Input Voltage Range Max
5.5

Input Voltage Range Min
2.3

# of Outputs
1

Output Current
300

Driver Type
Buck

Quiescent Current
0.32

Synchronous Rectifier
Yes

Temp Range Max °C (degrees Celsius)
125

Temp Range Min
-40

Vout Max
5.5

Vfb V (volt)
0.5

VoutMin
0.5

Download datasheets and manufacturer documentation for Microchip MIC2203YMM-TR.

Data Sheets:

b80b53e78c2d64ec0d0d3107c28408cf.pdf

The MIC2203 is a high efficiency 1MHz PWM synchronous buck switching regulator. The MIC2203 features low noise constant frequency PWM operation with a low dynamic supply current of <1mA. The low noise and efficient operation both make the MIC2203 well suited for sensitive RF, and audio power applications.

The MIC2203 operates from 2.3V to 5.5V input and can supply over 300mA of output current with output voltages down to 0.5V. Additionally, the MIC2203 can be synchronized to an external clock, or multiple MIC2203s can easily be daisy-chained with the SYNCLOCK feature.

The MIC2203 has a high loop bandwidth with corresponding ultra fast transient response times. This reduces the output capacitor size, and is very useful when powering applications that require fast dynamic response such as CPU cores and RF circuitry in high performance cellular phones and PDAs.

The MIC2203 is available in 10-pin MSOP package with an operating junction temperature range from -40°C to 125°C.

Input voltage range: 2.3V to 5.5V
Output voltage adjustable down to 0.5V
300mA output current
Constant 1MHz PWM switching frequency
> 95% efficiency
< 1mA switching supply current
< 350µA static quiescent current
< 1µA shutdown current
All-ceramic capacitors
Easily synchronized to external clock
SYNCLOCK feature to daisy chain multiple devices
Thermal shutdown and current limit protection
10-pin MSOP package
-40°C to +125°C junction temperature range

User Guide
