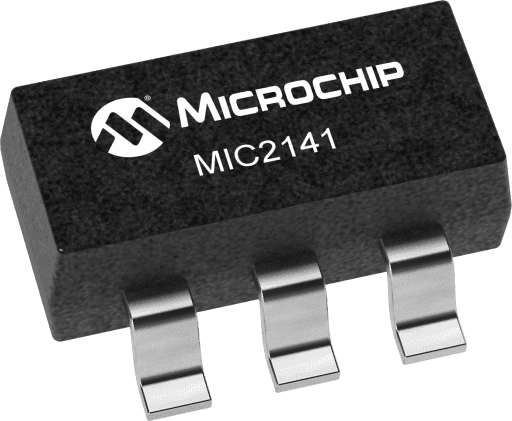

Microchip MIC2141YM5-TR

Manufacturer No:

MIC2141YM5-TR

Manufacturer:

Microchip

Package:

SC-74A, SOT-753

Description:

Micropower Boost Converter, Dynamically Adjustable

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2141YM5-TR information

Microchip MIC2141YM5-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2141YM5-TR.

Type
Parameter

Input Voltage Range Max
14

Input Voltage Range Min
2.5

Output Current
1000

Driver Type
Step Up (Boost)

Quiescent Current
0.07

Synchronous Rectifier
No

Temp Range Max °C (degrees Celsius)
85

Temp Range Min
-40

Topology
SEPIC, Flyback

Vout Max
22

Vfb V (volt)
1.24

VoutMin
2.8

Download datasheets and manufacturer documentation for Microchip MIC2141YM5-TR.

Data Sheets:

0fbb219ab3153a6e3e1b7579c8037865.pdf

The MIC2141 is a micropower boost switching regulator that can operate from 3- or 4-cell nickel-metal-hydride batteries or a single Li-Ion cell. This regulator employs a constant 330kHz, fixed 18% duty-cycle, gated-oscillator architecture.

The MIC2141 can be used in applications where the output voltage must be dynamically adjusted. The device features a control signal input which is used to proportionally adjust the output voltage. The control signal input has a gain of 6, allowing a 0.8V to 3.6V control signal to vary a 4.8V to 22V output.

The MIC2141 requires only three external components to operate and is available in a tiny 5-lead SOT-23 package for space and power-sensitive portable applications. The MIC2141 draws only 70µA of quiescent current and can operate with an efficiency exceeding 85%.

Implements low-power boost, SEPIC, or flyback
2.2V to 14V input voltage
330kHz switching frequency
<2µA shutdown current
70µA quiescent current
1.24V bandgap reference
typical output current 1mA to 10mA
SOT-23-5 package
