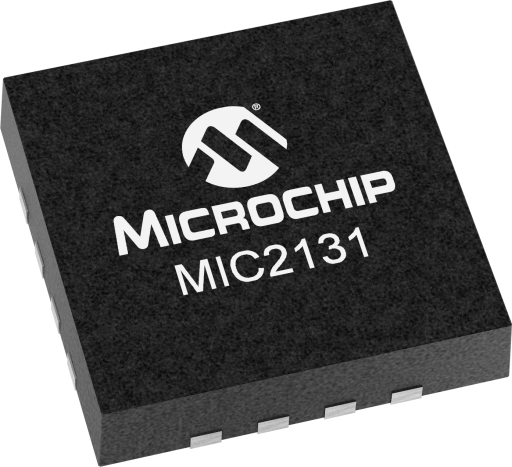

Microchip MIC2131-1YTSE-TR

Manufacturer No:

MIC2131-1YTSE-TR

Manufacturer:

Microchip

Package:

16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

High Voltage 150KHz Synchronous Buck Control

Quantity:

In Stock :5359

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Fri, May 22 - Sat, May 23, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

MIC2131-1YTSE-TR Information

Microchip MIC2131-1YTSE-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2131-1YTSE-TR.

Type
Parameter

Current Limit / Short Circuit Protection
Yes

Max Duty Cycle (%)
0.92

Enable Pin
Yes

Input UVLO Typ (V)
1.1

Internal Voltage Bias
Yes

Iq Off (µA)
180

Input Voltage Max
40

Input Voltage Min
8

Output Voltage Min
0.7

Operating Supply Current (mA)
4

Type
Parameter

Package
16/TSSOP, 16/4x4 MLF

Power Good Signal
Yes

Soft Start
1

Supported Outputs
1

Supported Topologies
Sync. Buck

Typical Tolerance (%)
±2

Download datasheets and manufacturer documentation for Microchip MIC2131-1YTSE-TR.

Data Sheets:

515aca4d8fac46340e72c3f90383076a.pdf

The MIC2130/1 is a high voltage input PWM synchronous buck IC. It is a voltage mode controller with a fast hysteretic control loop (FHyCL) employed during fast line and load transients. The internal gate drivers are designed to drive high current MOSFETs.

The MIC2130/1 can produce output voltages down to 0.7V with input voltage from 8V to 40V. The MIC2130 family of control ICs implements fixed frequency PWM control. The active anti-shoot through drive scheme means a wide range of external MOSFETs may be used while maintaining optimum efficiency.

The MIC2130/1 is the fully functional version of the family and implements a new feature to minimize EMI. This function is critical for systems that need to be compliant with EMI standards throughout the world.

The MIC2131 is available in 16-pin e-TSSOP at a junction temperature range of -40°C to +125°C.

8V to 40V input voltage range
Adjustable output voltages down to 0.7V
Low EMI option (MIC2131)
Fixed 150kHz and 400kHz frequency options
Excellent line and load regulation due to fast hysteretic control loop during transients
Adaptive gate drive allows efficiencies over 95%
Programmable current limit with no sense resistor
Senses low-side MOSFET current
Internal drivers allow 15A output current
Power Good output allow simple sequencing
Programmable soft-start pin
100% increase in current limit (MIC2131)
Output over-voltage protection
Programmable Input UVLO
16-pin e-TSSOP
Junction temperature range of -40°C to +125°C
