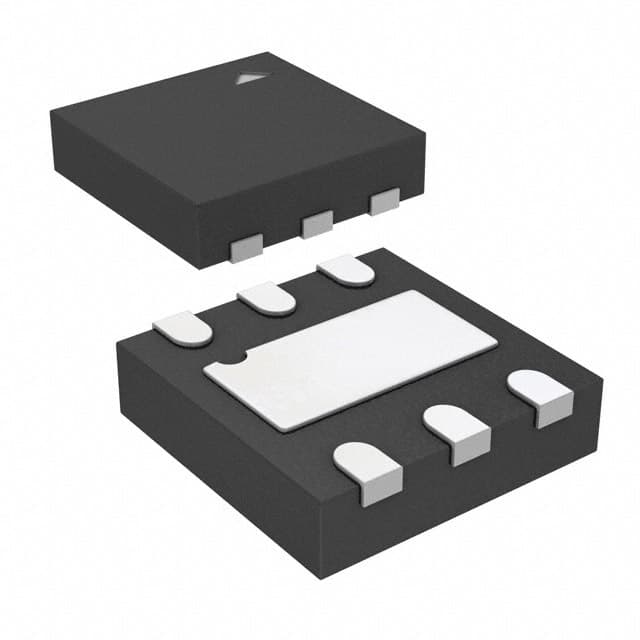

Microchip MIC2039BYMT-TR

Manufacturer No:

MIC2039BYMT-TR

Manufacturer:

Microchip

Package:

6-UDFN Exposed Pad

Description:

ADJ, High-Side, Power Distribution Switch

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2039BYMT-TR information

Microchip MIC2039BYMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2039BYMT-TR.

Type
Parameter

Driver Type
USB Power Dist

Type
Single

Vin Min (V)
2.5

Vin Max (V)
5.5

Max SW Current (A)
0

Adj Current Limit
Yes

Current Limit Adj# (Max)
2.5A

Current Limited
Yes

RDS ON @5V (mO)
75

Enable Logic
Active Low, Active High

VEN (V)
0

Oja (C/W)
177.2, 90

Rev Block Diode
No

UVLO
Yes

Thermal Shutdown
Yes

Fault Flag
Yes

Flag Transient Filter
Yes

UL Approved
Yes

Switch Element
P-Ch

Internal Charge Pump
No

Download datasheets and manufacturer documentation for Microchip MIC2039BYMT-TR.

Application Notes:

1aed73dbe75a533066d3070739a0a256.pdf

Data Sheets:

a75cf1d7c22cd81da7d5f9d92e300276.pdf

The MIC2039 is a high-side MOSFET power distribution switch providing increased system reliability by using 5% current limit accuracy. The MIC2039 has an operating input voltage range from 2.5V to 5.5V, is internally current limited, and has thermal shutdown to protect the device and system. The MIC2039 is offered with either active-high or active-low logic level enable input controls. It has an open drain fault status output flag with a built-in 32ms delay that asserts low during overcurrent or thermal shutdown conditions. The MIC2039 switches feature an adjustable output current limit that is resistor programmable from 0.2A to 2.5A. The MIC2039 switch also offers a unique, Kickstart feature that allows momentary high-current surges up to the secondary current limit (I_{LIMIT_}_2nd) during startup or while operating in steady state. This is useful for charging loads with high inrush currents, such as capacitors. After an overcurrent condition is established, these switches enter into a constant current limit mode unless the die temperature exceeds the thermal shutdown specification. The MIC2039 is available in 6-pin SOT-23 and 6-pin 2mm x 2mm thin DFN packages. The MIC2039 has an operating junction temperature range of −40°C to +125°C.

±5% current limit accuracy
Input supply range from 2.5V to 5.5V
Low quiescent current: 100µA typical (switch ON)
75mΩ typical RDS(ON) at 5.0V
0.2A to 2.5A adjustable output current
Kickstart - momentary secondary current limit threshold (120ms period)
Soft-start functionality
Undervoltage lockout (UVLO)
Fast 10µs short-circuit response time (non-Kickstart options)
Fault status output flag
Logic controlled enable (active-high, active-low)
Thermal shutdown
Pin compatible with the MIC2009/MIC2019
6-pin 2mm x 2mm thin DFN and 6-pin SOT-23 packages
Junction temperature range from −40°C to +125°C
UL recognized and EN/IEC 60950-1 (CB) Certified
