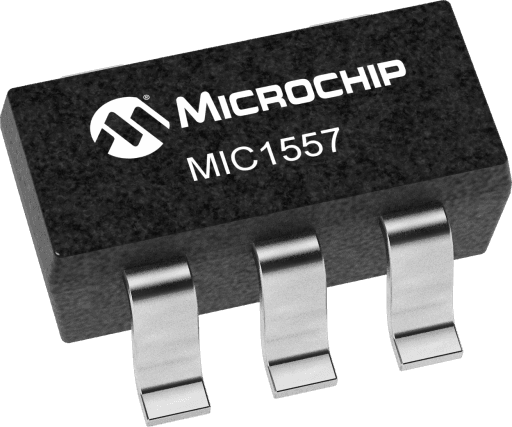

Microchip MIC1557YD5-TR

Manufacturer No:

MIC1557YD5-TR

Manufacturer:

Microchip

Package:

SOT-23-5 Thin, TSOT-23-5

Description:

555 RC Timer/Oscillator, 5MHz, 2.7V to 18V with Shutdown

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC1557YD5-TR information

Microchip MIC1557YD5-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC1557YD5-TR.

Type
Parameter

Output Frequency Max. (MHz)
5

Product Type
Timers

PullRange
0

Voltage
2.7 - 18

Download datasheets and manufacturer documentation for Microchip MIC1557YD5-TR.

Data Sheets:

b0d580600e6f23e8937f151b4a57aed8.pdf

The MIC1555 IttyBitty® CMOS RC timer/oscillator and MIC1557 IttyBitty® CMOS RC oscillator are designed to provide rail-to-rail pulses for precise time delay or frequency generation. These are 555 type timer/oscillator devices, without a frequency control (FC) pin or an open collector discharge (D) pin. The threshold pin (TH) has precedence over the trigger (TR) input, ensuring that the BiCMOS output is off when TR is high. The MIC1555 may be used as an astable (oscillator) or monostable (one-shot) with separate threshold and trigger inputs. In the one-shot mode, the output pulse width is precisely controlled by an external resistor and a capacitor. Time delays may be accurately controlled from microseconds to hours. In the oscillator mode, the output is used to provide precise feedback, with a minimum of one resistor and one capacitor producing a 50% duty cycle square wave. The MIC1557 is designed for astable (oscillator) operation only, with a chip select/reset (CS) input for low power shutdown. One resistor and one capacitor provide a 50% duty cycle square wave. Other duty-cycle ratios may be produced using two diodes and two resistors. The MIC1555/7 is powered from a +2.7V to +18V supply voltage. The MIC1555/7 is available in the SOT-23-5 5-pin package and is rated for -40°C to +85°C ambient temperature range.

+2.7V to +18V operation
<1µA typical shutdown mode (MIC1557)
200µA typical (TRG and THR low) at 3V supply
Timing from microseconds to hours
"Zero" leakage trigger and threshold inputs
50% square wave with one Resistor, one Capacitor
Threshold input precedence over trigger input
<15Ω output on resistance
No output cross-conduction current spikes
<0.005%/°C temperature stability
<0.055%/V supply stability
Small SOT-23-5 surface mount package
