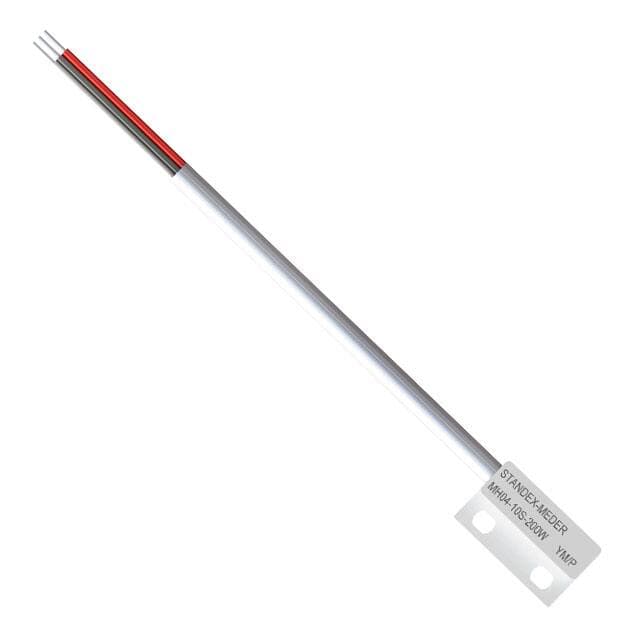

Standex MH04-11L-300W

Manufacturer No:

MH04-11L-300W

Manufacturer:

Standex

Package:

Flange Mount

Description:

MH04 Series Hall Effect Latch Cable Open Collector Magnet -40°C~85°C TA 5.9mm Height 3V~24V NO Flange Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MH04-11L-300W information

Standex MH04-11L-300W technical specifications, attributes, parameters and parts with similar specifications to Standex MH04-11L-300W.

Type
Parameter

Factory Lead Time
10 Weeks

Package / Case
Flange Mount

Surface Mount
NO

Actuator Material
Magnet

Operating Temperature
-40°C~85°C TA

Series
MH04

Published
2014

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

Type
Hall Effect Latch

Voltage - Supply
3V~24V

Reach Compliance Code
unknown

Termination Style
Cable

Body Length or Diameter
23mm

Body Breadth
13.9 mm

Output Type
Open Collector

Hysteresis
4.5 mT

Must Operate
22G

Must Release
-23G

Number of Axes
1

Body Height
5.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Standex MH04-11L-300W.

MH04-11L-300W Overview

Packages Flange Mount contain magnetic position sensor modules.

MH04-11L-300W Features

Package / Case: Flange Mount
MH04 Series
Operating Temperature: -40°C~85°C TA
Supply Voltage: 3V~24V

MH04-11L-300W Applications

There are a lot of Standex-Meder Electronics
MH04-11L-300W Magnetic Position Sensors Modules applications.

Lighting actuation slave sensor
Wiper home/end position sensor
End of travel and index sensors
Industrial controls
White goods
Position and limit sensing
RPM measurement
Flow metering
Commutation of brushless DC motors
Factory automation
