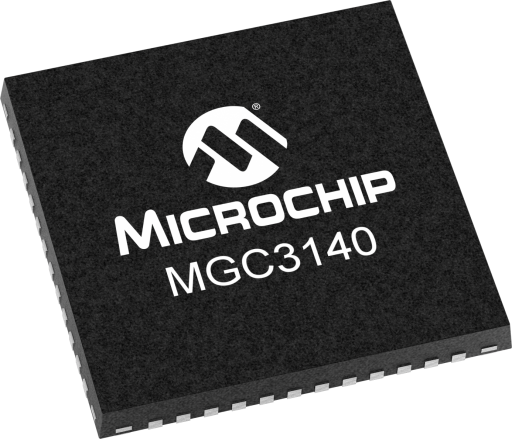

Microchip MGC3140-I/MV

Manufacturer No:

MGC3140-I/MV

Manufacturer:

Microchip

Package:

Description:

3D Tracking and Gesture controller

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MGC3140-I/MV information

Microchip MGC3140-I/MV technical specifications, attributes, parameters and parts with similar specifications to Microchip MGC3140-I/MV.

Type
Parameter

I/O, LED Drivers
5

Input Channels
5

Number of Keys Max
0

Measurement Principle
E-Field

Number of Touches
0

Output Channels
5

Power
3.3Vdc ±5%

Power Modes
3

Product Type
3D Positioning/Gesture

Proximity detection
Yes

Report Rate (pps)
200

Slider
No

Voltage Max
3.47

Voltage Min
3.14

Download datasheets and manufacturer documentation for Microchip MGC3140-I/MV.

User Guide:

dbe3c99e4a1c7331214e06a12c93e2b5.pdf

bcccabc312299f54dc632ab895696a89.pdf

7fffe5f0e7682ffaed4b3a4c970cf037.pdf

7311966427feee2b0885407092223ce0.pdf

Data Sheets:

4505d287fce3ce341225a0f91ac2947d.pdf

MGC3140 is the world’s first Automotive qualified electrical-field (E-field) based three-dimensional (3D) tracking and gesture controller. The chip is based on Microchip’s patented GestIC® technology and enables user command input with natural hand and finger movements in free-space. The GestIC Colibri Suite is processed on-chip and enables a wide range of gesture applications shortening time-to-market success.

The MGC3140 represents a unique and high performance single chip gesture solution focusing on Automotive applications. MGC3140 provides gesture and proximity detection enabling modern and compelling user interfaces to be created and is suitable for Consumer, Industrial and Automotive applications.

A Linux driver is available on the Microchip Github server:

https://github.com/MicrochipTech/linux-at91-Gestic/

AEC-Q100 Qualified
5 Tx Electrode
5 Rx Electrodes
Communication via serial I2C interface
Sensing Type: E-Field
Detection Range: 0 to 20 cm
5 pin Gesture Port
Package Type: 48-pin 6x6mm UQFN
Operating Temperature Range: -40 degC to +125 degC
