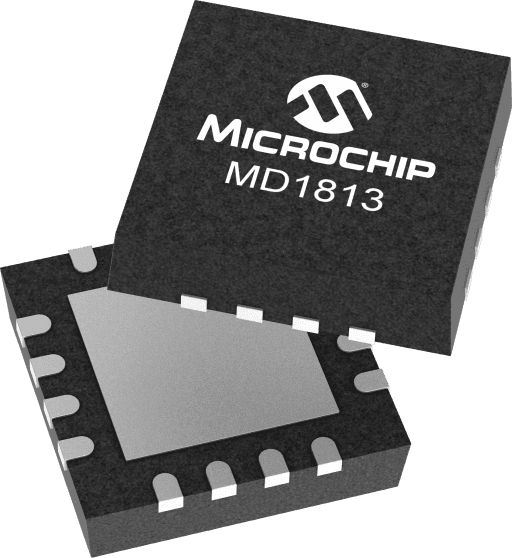

Microchip MD1813K6-G

Manufacturer No:

MD1813K6-G

Manufacturer:

Microchip

Package:

16-VQFN Exposed Pad

Description:

HIGH SPEED QUAD MOSFET DRIVER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MD1813K6-G information

Microchip MD1813K6-G technical specifications, attributes, parameters and parts with similar specifications to Microchip MD1813K6-G.

Type
Parameter

# of Channels
4

Input Voltage min (V)
1.2

Input Voltage max (V)
5

Output Voltage Bipolar (V)
±5.0

Output Voltage Unipolar (V)
0 - 12

Package
QFN-16

Download datasheets and manufacturer documentation for Microchip MD1813K6-G.

Application Notes:

acadec58d01b08bdaae9ae5015ee62a5.pdf

Data Sheets:

9083f15140892e02c010d3dbaab726f1.pdf

MD1813 is a high-speed quad MOSFET driver. It is designed to drive two N- and two P-channel, high voltage, DMOS FETs for medical ultrasound applications, but may be used in any application that needs a high output current for a capacitive load. The input stage of the MD1813 is a high-speed level translator that is able to operate from logic input signals of 1.8 to 5.0V amplitude. An adaptive threshold circuit is used to set the level translator threshold to the average of the input logic 0 and logic 1 levels. The level translator uses a proprietary circuit, which provides DC coupling together with high-speed operation. The output stage of the MD1813 has separate power connections, enabling the output signal L and H levels to be chosen independently from the driver supply voltages. As an example, the input logic levels may be 0 and 1.8V, the control logic may be powered by +5.0 and -5.0V, and the output L and H levels may be varied anywhere over the range of -5.0 to +5.0V. The output stage is capable of peak currents of up to ±2.0 amps, depending on the supply voltages used and load capacitance. The OE pin serves a dual purpose. First, its logic H level is used to compute the threshold voltage level for the channel input level translators. Secondly, when OE is low, the outputs are disabled, with the A output high and the B output low. This assists in properly pre-charging the coupling capacitors that may be used in series in the gate drive circuit of an external PMOS and NMOS. A built-in level shifter is for PMOS gate negative bias driving. It enables the user-defined damping control to generate return-to-zero bipolar output pulses. The MD1813 has a non-inverting driver OUTD for easy logic.

6ns rise and fall time
2.0A peak output source/sink current
1.8 to 5.0V input CMOS compatible
Smart Logic threshold
Low jitter design
Quad matched channels
Drives two N and two P-channel MOSFETs
Outputs can swing below ground
Built-in level translator for negative gate bias
Non-inverting gate driver OUTD for easy logic
Low inductance quad flat no-lead package
Thermally-enhanced package
