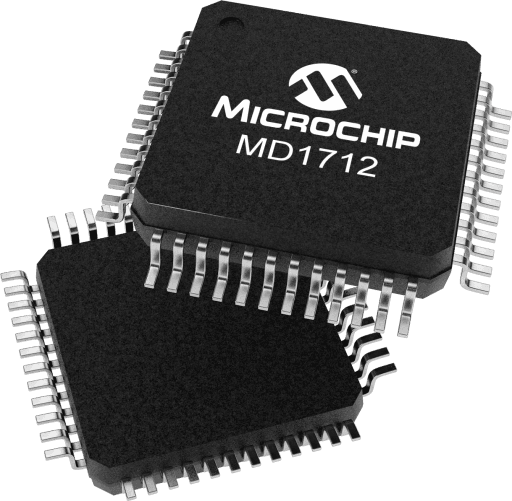

Microchip MD1712FG-G

Manufacturer No:

MD1712FG-G

Manufacturer:

Microchip

Package:

48-LQFP

Description:

HIGH SPEED, INTEGRATED ULTRASOUND DRIVER IC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MD1712FG-G information

Microchip MD1712FG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip MD1712FG-G.

Type
Parameter

# of Channels
12

Input Voltage min (V)
1.8

Input Voltage max (V)
5.5

Output Voltage Bipolar (V)
--

Output Voltage Unipolar (V)
0 - 12

Package
QFN-48, LQFP-48

Download datasheets and manufacturer documentation for Microchip MD1712FG-G.

Data Sheets:

4777012719671152b7e6d16809f8a2f1.pdf

MD1712 is a two-channel, five-level, high voltage and high speed transmitter driver IC. It is designed for medical ultrasound imaging applications, but can also be used for metal flaw detection, Non-Destructive Testing (NDT), and for driving piezoelectric transducers. The MD1712 is a two-channel logic controller circuit with low impedance MOSFET gate drivers. There are two sets of control logic inputs, one for channel A and one for channel B. Each channel consists of three pairs of MOSFET gate drivers. These drivers are designed to match the drive requirements of TC6320. The MD1712 drives six TC6320s. Each pair consists of an N-channel and a P-channel MOSFET. They are designed to have the same impedance and can provide peak currents of over 2.0amps.

Drives two ultrasound transducer channels
Generates five-level waveform
Drives 12 high voltage MOSFETs
±2.0A source and sink peak current
Up to 20MHz output frequency
12V/ns slew rate
±3.0ns matched delay times
Second harmonic is less than -40dB
Two separate gate drive voltages
1.8 to 3.3V CMOS logic interface

User Guide

PURCHASE
