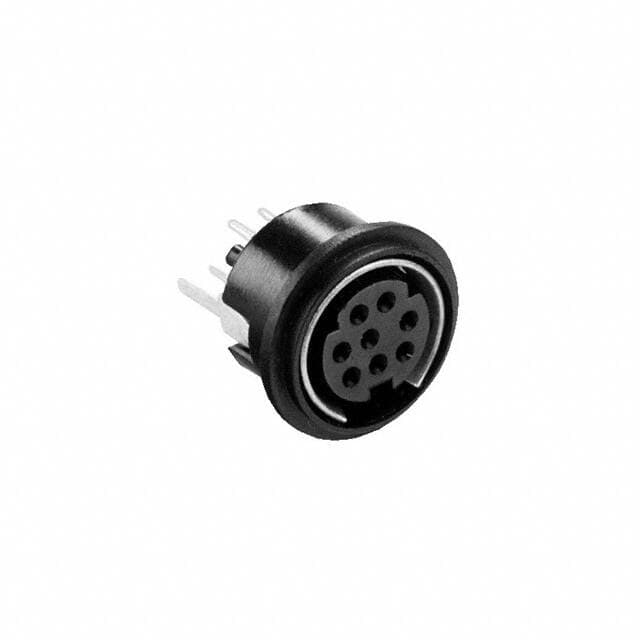

CUI MD-80SV

Manufacturer No:

MD-80SV

Manufacturer:

CUI

Package:

Description:

Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole 8 Positions Solder Silver Bulk Keyed Push-Pull

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MD-80SV information

CUI MD-80SV technical specifications, attributes, parameters and parts with similar specifications to CUI MD-80SV.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Phosphor Bronze

Contact Plating
Silver

Mount
Through Hole

Mounting Type
Through Hole

Insulation Material
Plastic

Shell Material
Polybutylene Terephthalate (PBT)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
MD-SV

Published
2011

Feature
Ground

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

Connector Type
Receptacle, Female Sockets

Number of Positions
8

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Color
Black

Voltage - Rated
100VAC 12VDC

Fastening Type
Push-Pull

Contact Finish - Mating
Silver

Current Rating (Amps)
1A 2A

Shielding
Unshielded

Current Rating
2A

Shell Size - Insert
Mini DIN

Number of Contacts
8

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for CUI MD-80SV.

MD-80SV Overview

The product comes in a package of Receptacle, Female Sockets.Through Hole is the mount type.Bulk cases are used to package the product.This product is in the MD-SV Series.When the temperature falls below 85°C, it is best to use it.Minimum temperature is -40°C.As a result of its Ground feature, it possesses a great deal of power.There's a Through Hole on the part.Operating temperature is -40°C~85°C.

MD-80SV Features

MD-SV series

MD-80SV Applications

There are a lot of CUI Devices
MD-80SV Circular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
