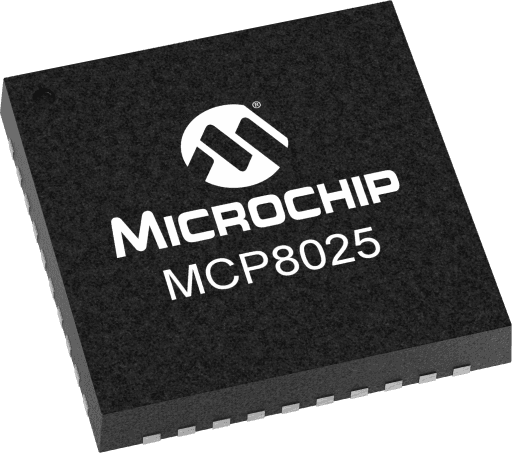

Microchip MCP8025T-115H/MP
Manufacturer No:
MCP8025T-115H/MP
Manufacturer:
Microchip
Package:
40-VFQFN Exposed Pad
Description:
3-Phase Brushless DC (BLDC) Gate Driver with LIN Transciver and Power Modules
Quantity:
In Stock :6356
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Sat, Jun 6 - Sun, Jun 7, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MCP8025T-115H/MP Information
Microchip MCP8025T-115H/MP technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP8025T-115H/MP.
- Type
- Parameter
- Integrated LIN TR/RX
- Yes
- Integrated Op Amps
- 1
- Max. Ron per Output (Ω)
- 0
- Motor Control Methods
- Direct PWM Input
- Motor Speed Output
- BEMF Comparator
- Integrated Voltage Regs
- 3
- Supply Voltage Max (V)
- 19
- Supply Voltage Min (V)
- 6
- Output Type
- Gate Driver
- TempRange Max
- +150
- Type
- Parameter
- TempRange Min
- -40
- VRCurrent
- 250
Download datasheets and manufacturer documentation for Microchip MCP8025T-115H/MP.
The MCP8025 is a 3-Phase brushless motor gate driver and power module that integrates the following features: key-off Sleep mode, a LIN transceiver, a buck voltage regulator, two LDO regulators, power monitoring comparators, an over-temperature sensor, a zero-crossing detector, a neutral simulator, a comparator, and an operational amplifier for motor current monitoring.
The phase comparator and multiplexer allow for hardware commutation detection. The neutral simulator allows commutation detection without a neutral tap in the motor. The buck converter is capable of delivering 750 mW of power for powering a companion microcontroller. The buck regulator may be disabled if not used. The on-board 5V and 12V low dropout voltage regulators are capable of delivering 30 mA of current.
The MCP8025 supports a broad temperature range of -40°C to +150°C. Package options include the 40-lead 5x5 QFN and 48-lead 7x7 TQFP.
- Sleep Mode: 5 µA Typical
- Standby Mode: < 200 µA
- LIN Bus Specifications 1.3 and 2.2 Compliant
- SAE J2602 Compliant
- Dominate State Time Out
- Supports Baud Rates up to 20K baud
- Internal pull-up resistor and diode
- Protected against ground shorts and against loss of ground
- Automatic thermal shutdown
- Independent input control for high-side NMOS and low-side NMOS MOSFETs
- Peak output current: 0.5A @ 12V
- Shoot-through protection
- Overcurrent and short circuit protection
- 5V @ 30 mA
- 12V @ 30 mA
- Integrated Operational Amplifier
- Overcurrent Comparator With DAC Reference
- Phase Comparator With Multiplexer
- Neutral Simulator
- Adjustable Output Buck Regulator (750 mW)
- Operational Voltage Range: 6V-19V
- Buck Regulator Undervoltage Lockout: 4.0V
- Undervoltage Lockout (UVLO): 5.5V
- Overvoltage Lockout (OVLO): 20V
- Transient (100 ms) Voltage Tolerance: 48V
- Extended Temperature Range: TA = -40°C to +150°C or TA = -40°C to +125°C
- Thermal Warning and Shutdown
