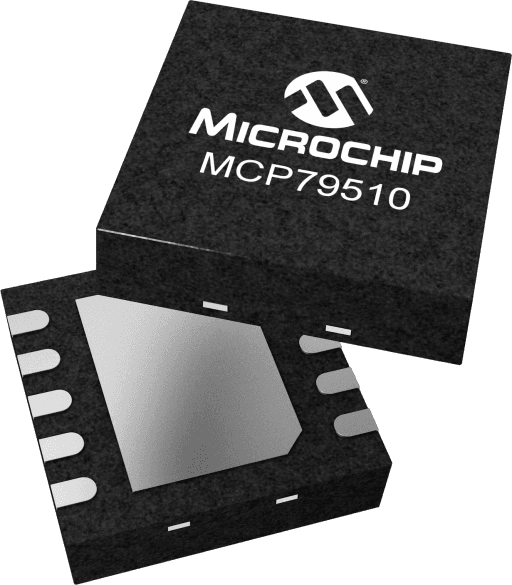

Microchip MCP79510T-I/MS

Manufacturer No:

MCP79510T-I/MS

Manufacturer:

Microchip

Package:

10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Description:

SPI GPP RTCC w/1k EEPROM, 64B SRAM and Unique ID.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP79510T-I/MS information

Microchip MCP79510T-I/MS technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP79510T-I/MS.

Type
Parameter

EEPROM Data Memory Bytes
1

Unique ID with MAC Address
Blank

User SRAM (Bytes)
64

Max Interface Speed
10 MHz

Minimum Clock Count
0.01 sec

Pin Count
10

Unique ID (Bits)
128

Temp Range Max °C (degrees Celsius)
85

Temp Range Min °C (degrees Celsius)
-40

Download datasheets and manufacturer documentation for Microchip MCP79510T-I/MS.

The MCP79510 SPI RTCC is highly integrated with memory and advanced features normally found in higher priced devices. By starting with a basic real-time clock, digital trimming was added for higher accuracy, a battery switchover for backup power, a timestamp to log power failures and three types of memory, which includes SRAM, EEPROM and a blank unique ID in a locked section of EEPROM. The ID is blank in this device, but can also be ordered with a 48-bit or 64-bit MAC Address.

VCC Min = 1.8V
Icc < 5 µA Typical
VBAT Min = 1.3V
Ibat < 700nA Typical Timekeeping & SRAM Retention Current
Automatic Battery Switchover with Timestamp
Dual configurable alarms with a 0.01 sec count on one alarm
Clock Out frequencies: 32.768, 8.192 & 4.096 KHz and 1 Hz
Adjusts up to 22 seconds/day
Protect: None, 1/4, 1/2 or all of array
Factory standard MAC address programming or custom ID available

User Guide
