Microchip MCP6C02T-050H/Q8BVAO
Microchip MCP6C02T-050H/Q8BVAO

Microchip MCP6C02T-050H/Q8BVAO

Manufacturer No:

MCP6C02T-050H/Q8BVAO

Manufacturer:

Microchip

Package:

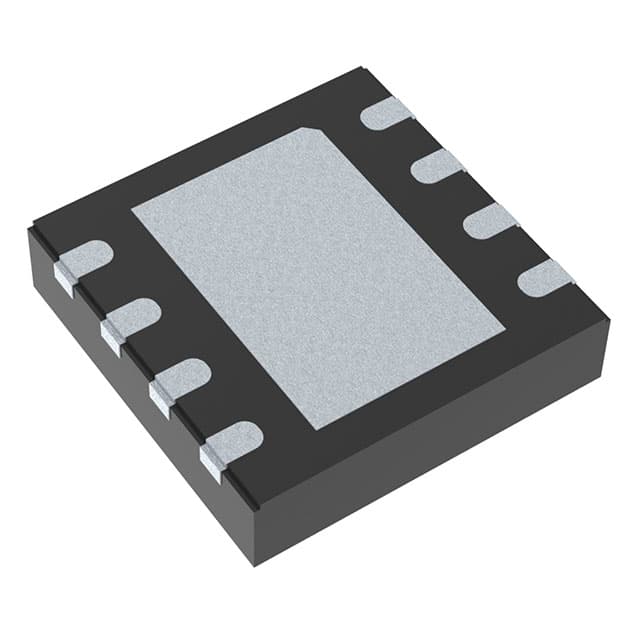

8-VDFN Exposed Pad

Description:

Single, Bidirectional High-Side Current Sense Amplifier

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

MCP6C02T-050H/Q8BVAO Information

Microchip MCP6C02T-050H/Q8BVAO technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP6C02T-050H/Q8BVAO.

  • Type
  • Parameter
  • Bandwidth (kHz)
  • 500
  • CMRR Min (dB)
  • 132
  • Enhanced EMI Protection
  • Yes
  • Gain (V/V)
  • 20, 50, 100
  • Gain Error Max (%)
  • 1.6
  • Iq Max (uA)
  • 725
  • Input Common Mode Voltage Max (V) Max V (volt)
  • 65
  • Input Common Mode Voltage Min dB (decibels)
  • 3
  • Iq Typical (µA)
  • 490
  • Operating Voltage Min V (volt)
  • 2
  • Type
  • Parameter
  • Operating Voltage Max V (volt)
  • 5.5
  • PSRR Min (dB)
  • 109
  • Vos Drift Max µV (microvolt)
  • 85
  • Vos Max µV (microvolt)
  • 16

Download datasheets and manufacturer documentation for Microchip MCP6C02T-050H/Q8BVAO.

Application Notes:

Data Sheets:

The MCP6C02 high-side current sense amplifier provides input offset voltage correction for very low offset and offset drift. This device is offered with preset gains of 20, 50 and 100 V/V. The input common-mode range extends from 3V to 65V, and the power supply operating voltage is from 2V to 5.5V.

  • Zero-drift architecture
  • Bidirectional or unidirectional operation
  • Maximum offset less than 16 µV
  • Maximum offset drift less than 85 nV/°C
  • Specified input common-mode range: 3V to 65V
  • Bandwidth of 500 kHz (typical)
  • Enhanced EMI rejection
  • Specified from -40 to +125°C (SOT-23 Package)
  • Specified from -40 to +150°C (VDFN Package)
  • Small 6-pin SOT-23 and 8-pin 3x3 VDFN packaging
      • AEC-Q100 Qualified
    • Grade 1: 6-pin SOT-23 package
    • Grade 0: 8-pin VDFN package
