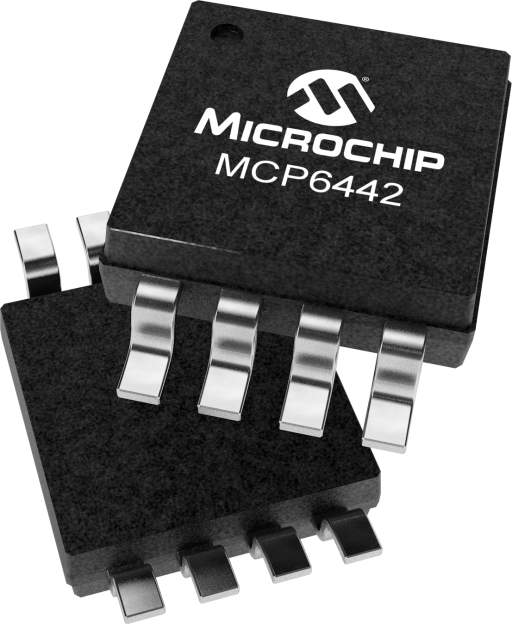

Microchip MCP6442-E/MS

Manufacturer No:

MCP6442-E/MS

Manufacturer:

Microchip

Package:

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Description:

MCP6442 is a 9 kHz Op Amp with typical supply current of 450nA and operates from 1.4V to 6.0V. This dual Op Amp is available in TDFN, MSOP and SOIC p

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP6442-E/MS information

Microchip MCP6442-E/MS technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP6442-E/MS.

Type
Parameter

CMRR Min (dB)
60

Enhanced EMI Protection
No

Gain Bandwidth Product kHz (kilohertz)
9

Iq Max (uA)
0.65

Input Voltage Noise Density (nV/rt(Hz))
190

Iq Typical (µA)
0.45

Operating Voltage Max V (volt)
6.0

Operating Voltage Min V (volt)
1.4

PM (deg)
65

PSRR Min (dB)
65

# Per Package
2

Slew Rate (V/µs)
0.003

Vos Max µV (microvolt)
4500

Download datasheets and manufacturer documentation for Microchip MCP6442-E/MS.

Application Notes:

a67c87444090372a58632ee1d3e6865f.pdf

Data Sheets:

3ac3c4223b4e13d98788a4c5867a7aa9.pdf

The MCP6442 device is a dual nanopower operational amplifier (op amp), which has low quiescent current (450 nA, typical) and rail-to-rail input and output operation. This op amp is unity gain stable and has a gain bandwidth product of 9 kHz (typical). This device operates with a single supply voltage as low as 1.4V. These features make the family of op amps well suited for single-supply, battery-powered applications. The MCP6442 op amp is designed with Microchip’s advanced CMOS process and offered in TDFN, SOIC and MSOP packages. All devices are available in the extended temperature range, with a power supply range of 1.4V to 6.0V.

Low Quiescent Current: 450 nA (typical)
Gain Bandwidth Product: 9 kHz (typical)
Supply Voltage Range: 1.4V to 6.0V
Rail-to-Rail Input and Output
Unity Gain Stable
Slew Rate: 3V/ms (typical)
Extended Temperature Range: -40°C to +125°C
Available in TDFN, SOIC and MSOP
