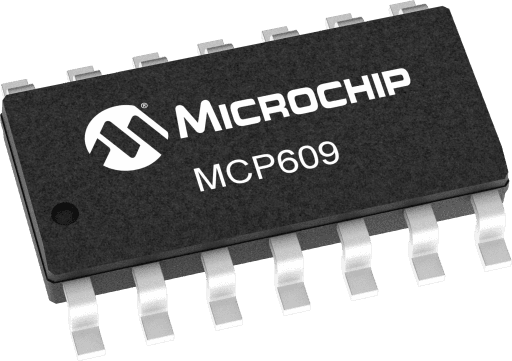

Microchip MCP609T-I/ST

Manufacturer No:

MCP609T-I/ST

Manufacturer:

Microchip

Package:

14-TSSOP (0.173, 4.40mm Width)

Description:

155 kHz, Quad, Precision Op Amp

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP609T-I/ST information

Microchip MCP609T-I/ST technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP609T-I/ST.

Type
Parameter

CMRR Min (dB)
75

Enhanced EMI Protection
No

Gain Bandwidth Product kHz (kilohertz)
155

Iq Max (uA)
25

Input Voltage Noise Density (nV/rt(Hz))
38

Iq Typical (µA)
19

Operating Voltage Max V (volt)
6.0

Operating Voltage Min V (volt)
2.5

PM (deg)
62

PSRR Min (dB)
80

# Per Package
4

Slew Rate (V/µs)
0.08

Vos Max µV (microvolt)
250

Download datasheets and manufacturer documentation for Microchip MCP609T-I/ST.

The MCP609 quad operational amplifier (op amp) has a gain bandwidth product of 155 kHz with a low typical operating current of 18.7 uA and an offset voltage that is less than 250 µV. The MCP609 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP609 operates with a single supply voltage that can be as low as 2.5V, while drawing less than 25 uA of quiescent current per amplifier. The MCP609 is available in standard 14-lead PDIP, SOIC and TSSOP packages. This amplifier is ideal for battery and loop-powered applications as well as industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications. AEC-Q100 Grade 1 qualification is available for this device

Low Input Offset Voltage: 250 µV (max.)
Rail-to-Rail Output
Low Input Bias Current: 1 pA (typ.)
Low Quiescent Current: 25 µA (max.)
Power Supply Voltage: 2.5V to 6.0V
Unity-Gain Stable
Industrial Temperature Range: -40°C to +85°C
Available in Small 14-pin TSSOP Package
AEC-Q100 Grade 1

User Guide
