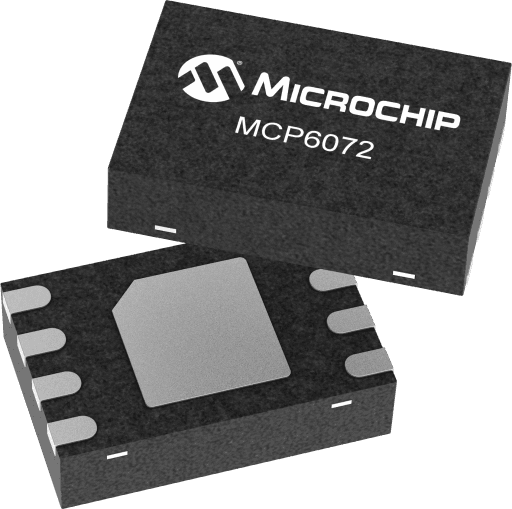

Microchip MCP6072T-E/MNY

Manufacturer No:

MCP6072T-E/MNY

Manufacturer:

Microchip

Package:

8-WFDFN Exposed Pad

Description:

1.2MHz, Dual, Precision Op Amp

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP6072T-E/MNY information

Microchip MCP6072T-E/MNY technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP6072T-E/MNY.

Type
Parameter

CMRR Min (dB)
89

Enhanced EMI Protection
No

Gain Bandwidth Product kHz (kilohertz)
1200

Iq Max (uA)
170

Input Voltage Noise Density (nV/rt(Hz))
19

Iq Typical (µA)
110

Operating Voltage Max V (volt)
6.0

Operating Voltage Min V (volt)
1.8

PM (deg)
57

PSRR Min (dB)
87

# Per Package
2

Slew Rate (V/µs)
0.5

Vos Max µV (microvolt)
150

Download datasheets and manufacturer documentation for Microchip MCP6072T-E/MNY.

The MCP6072 operational amplifier (op amps) has a low input offset voltage (±150 µV, maximum) and rail-to-rail input and output operation. The MCP6072 is unity gain stable and has a gain bandwidth product of 1.2 MHz (typical). This device operates with a single supply voltage as low as 1.8V, while drawing low quiescent current per amplifier (110 µA, typical). These features make the MCP6072 well suited for single-supply, high precision, battery-powered applications. The MCP6072 is available is SOIC and 2x3 TDFN packages. AEC-Q100 Grade 1 qualification is available for this device

Gain Bandwidth Product of 1.2 MHz (typical)
Low input offset voltage (±150 µV, maximum)
Rail-to-Rail Input and Output
Unity gain stable
Low quiescent current
Low input offset voltage
AEC-Q100 Grade 1

User Guide
