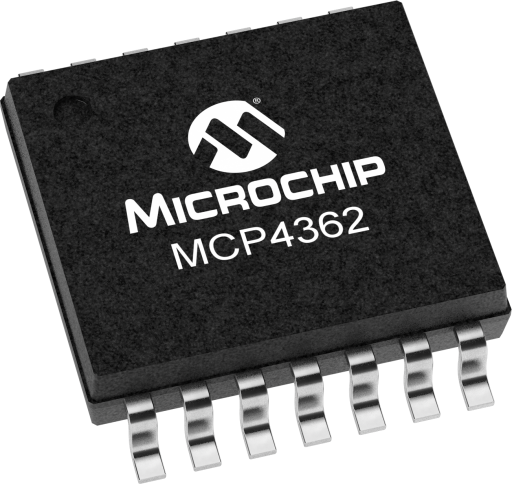

Microchip MCP4362-103E/ST

Manufacturer No:

MCP4362-103E/ST

Manufacturer:

Microchip

Package:

14-TSSOP (0.173, 4.40mm Width)

Description:

Quad-channel, 8-bit, non-volatile digital potentiometer with EPPROM and SPI interface.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP4362-103E/ST information

Microchip MCP4362-103E/ST technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP4362-103E/ST.

Type
Parameter

Resolution (Number of Taps)
257

Resistance (ohms) k
5, 10, 50, 100

Download datasheets and manufacturer documentation for Microchip MCP4362-103E/ST.

The MCP436X devices are non-volatile, 8-bit (257 wiper steps) digital potentiometers with EEPROM and an SPI compatible interface. The MCP436X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP436X devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.

We welcome questions, comments and recommendations for improvements to this page - please contact us at: Digipotwebrequests@microchip.com if you have any; please mention the part number in the email subject header.

Quad Resistor Network
Potentiometer or Rheostat Configuration Options
8-bit: 256 Resistors (257 Steps)
5kΩ
10kΩ
50kΩ
100kΩ
Zero Scale to Full Scale Wiper Operation
Low Wiper Resistance: 75 Ω (typical)
Absolute (Rheostat): 50 ppm typical (0°C to 70°C)
Ratiometric (Potentiometer): 15 ppm typical
Automatic Recall of Saved Wiper Setting
WiperLock™ Technology
SPI serial interface (10 MHz, modes 0,0 & 1,1)
High-Speed Read/Writes to wiper registers
Read/Write to Data EEPROM registers
Serially enabled EEPROM write protect
Resistor Network Terminal Disconnect Featurevia Terminal Control (TCON) Register
Reset input pin
Hardware Write Protect (WP) Control pin
Software Write Protect (WP) Configuration bit
Brown-out reset protection (1.5V typical)
Serial Interface Inactive current (2.5 uA typical)
High-Voltage Tolerant Digital Inputs: Up to 12.5V
Supports Split Rail Applications
2.7V to 5.5V - Device CharacteristicsSpecified
1.8V to 5.5V - Device Operation
2 MHz (typical) for 5.0 kΩ device
Extended temperature range (-40°C to +125°C)
