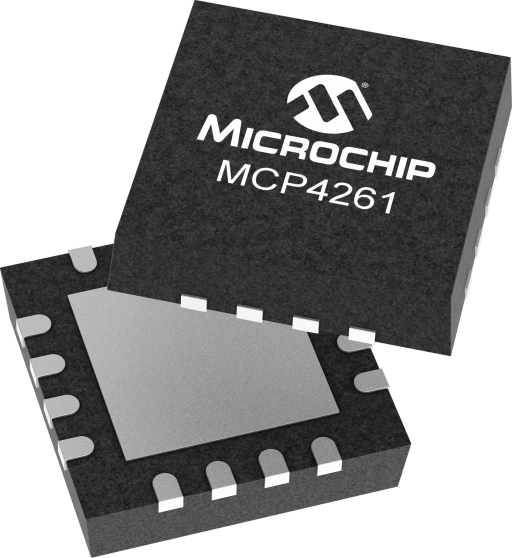

Microchip MCP4261-502E/SL

Manufacturer No:

MCP4261-502E/SL

Manufacturer:

Microchip

Package:

14-SOIC (0.154, 3.90mm Width)

Description:

Dual-channel, 8-bit, non-volatile digital potentiometer with EEPROM and SPI interface.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP4261-502E/SL information

Microchip MCP4261-502E/SL technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP4261-502E/SL.

Type
Parameter

# of Steps b (bit)
257

RAB kΩ (kilo ohm)
5, 10, 50, 100

Download datasheets and manufacturer documentation for Microchip MCP4261-502E/SL.

The MCP41/426X devices are non-volatile, 8-bit (257 wiper steps) digital potentiometers with EEPROM and an SPI compatible interface. The MCP41/42XX family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP41/42XX devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.

We welcome questions, comments and recommendations for improvements to this page - please contact us at: Digipotwebrequests@microchip.com if you have any; please mention the part number in the email subject header.

8-bit: 256 Resistors with Taps to VSS and VDD
SPI compatible interace
Automatic Recall of Potentiometer Wiper Settings
Resistance Values: 5kΩ, 10kΩ, 50kΩ,100kΩ
Absolute (Rheostat): <100 ppm (typ.)
Ratiometric (Potentiometer): <10 ppm (typ.)
Low Wiper Resistance: 100Ω (typ.)
WiperLock™ Technology to Secure the EEPROM
Low-Power Operation: 1µA Max Static Current
Wide Operating Voltage: 2.7V to 5.5V
Extended Temperature Range: -40°C to +125°C

User Guide
