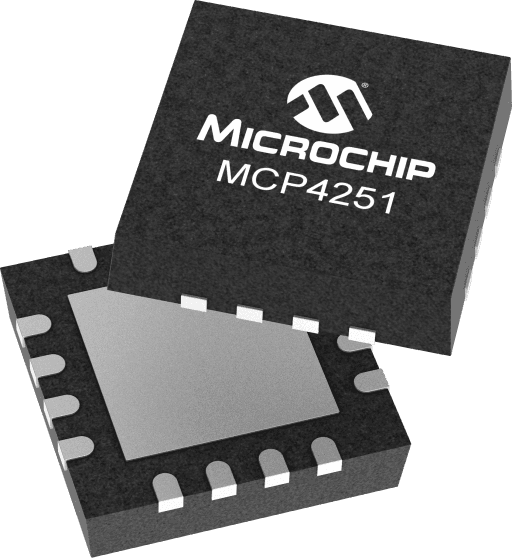

Microchip MCP4251-503E/ST

Manufacturer No:

MCP4251-503E/ST

Manufacturer:

Microchip

Package:

14-TSSOP (0.173, 4.40mm Width)

Description:

Dual-channel, 8-bit, volatile digital potentiometer with SPI interface.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP4251-503E/ST information

Microchip MCP4251-503E/ST technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP4251-503E/ST.

Type
Parameter

Resolution (Number of Taps)
257

Resistance (ohms) k
5, 10, 50, 100

Download datasheets and manufacturer documentation for Microchip MCP4251-503E/ST.

The MCP41/425X devices are volatile, 8-bit (257 wiper steps) digital potentiometers with an SPI compatible interface. The MCP41/42XX family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.

We welcome questions, comments and recommendations for improvements to this page - please contact us at: Digipotwebrequests@microchip.com if you have any; please mention the part number in the email subject header.

8-bit:256 Resistors with Taps to VSS and VDD
SPI compatible interace
Automatic Recall of Potentiometer Wiper Settings
Resistance Values: 5kΩ, 10kΩ, 50kΩ, 100kΩ
Absolute (Rheostat): <100 ppm (typ.)
Ratiometric (Potentiometer): <10 ppm (typ.)
Low Wiper Resistance: 100Ω (typ.)
Low-Power Operation: 1µA Max Static Current
Wide Operating Voltage: 1.8V to 5.5V
Extended Temperature Range: -40°C to +125°C

User Guide
