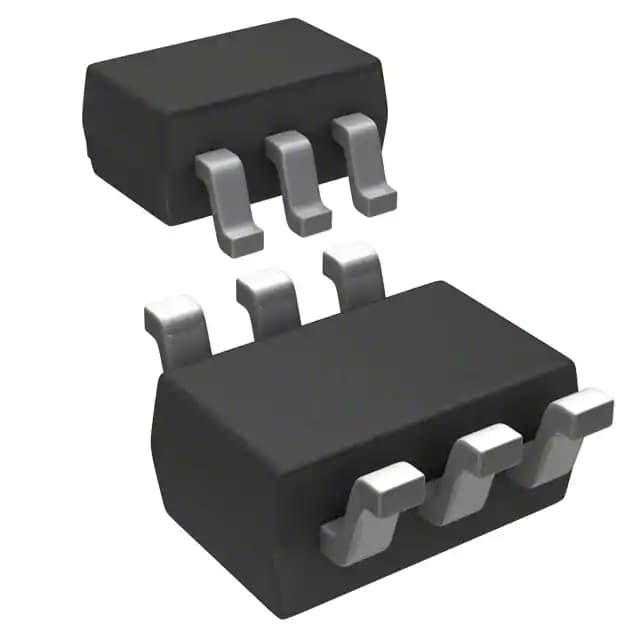

Microchip MCP40D17T-104E/LT

Manufacturer No:

MCP40D17T-104E/LT

Manufacturer:

Microchip

Package:

6-TSSOP, SC-88, SOT-363

Description:

6 Terminations 2.7V 6 Pin MCP40D17 Digital Potentiometers I2C 128 Positions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP40D17T-104E/LT information

Microchip MCP40D17T-104E/LT technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP40D17T-104E/LT.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-TSSOP, SC-88, SOT-363

Number of Pins
6

Operating Temperature
-40°C~125°C

Packaging
Cut Tape (CT)

Published
2009

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Temperature Coefficient
150 ppm/°C

Resistance
100kOhm

Number of Positions
128

Terminal Finish
Matte Tin (Sn) - annealed

Subcategory
Digital Potentiometers

Technology
CMOS

Voltage - Supply
1.8V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
2.7V

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
MCP40D17

Pin Count
6

Power Supplies
3/5V

Configuration
Rheostat

Interface
I2C

Number of Circuits
1

Nominal Supply Current
45?A

Memory Type
Volatile

Converter Type
DIGITAL POTENTIOMETER

Bandwidth
0.1 kHz

Taper
Linear

Number of Taps
128

Total Resistance
100000Ohm

Resistance - Wiper (?) (Typ)
155

Resistor Terminal Voltage-Max
5.5V

Height
1mm

Length
2mm

Width
1.25mm

REACH SVHC
No SVHC

Radiation Hardening
No

Download datasheets and manufacturer documentation for Microchip MCP40D17T-104E/LT.

MCP40D17T-104E/LT Overview

It is contained in 6-TSSOP, SC-88, SOT-363 pacakge.This pentometer begins to be stored by Volatile.There are embedded 1 circuits in this digital potentiometer.It is accessible in the Cut Tape (CT) package to secure the digital analogic.There are 128 taps to protect the overcurrent of this pentometer.Pentometer consists of 128 positions.It is designed 6 terminations.This programmable potentiometer includes 1 functions for your reference.The total resistance of the speed potentiometers will be 100000Ohm as shown.It is powered by 2.7V to deliver its perfomance.6 pins can be seen in The digi devices.It is recommended to mount in the way of Surface Mount.The potentionmeter can supply 1.8V~5.5V voltage.This digital potentiometers operate temperature at the range of -40°C~125°C.100kOhm can limit the flow.Pentometer is a member of MCP40D17 family.Digital potentiometer is mounted by Surface Mount.This potentiameter gets 6 pins on it.Its type of converter can be classify by DIGITAL POTENTIOMETER.It is capable of delivering voltage at 3/5V.The pentometer is from Digital Potentiometers family.
