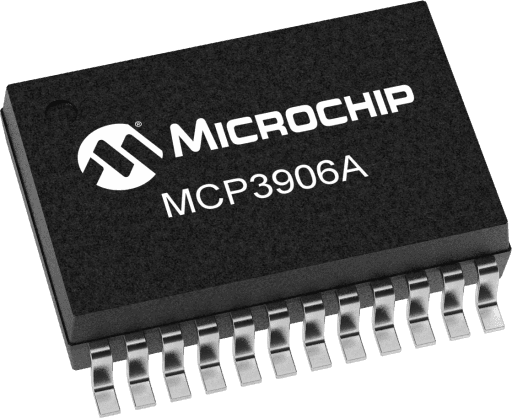

Microchip MCP3906A-I/SS

Manufacturer No:

MCP3906A-I/SS

Manufacturer:

Microchip

Package:

24-SSOP (0.209, 5.30mm Width)

Description:

The MCP3906A is an energy measurement IC with active power output for energy metering.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP3906A-I/SS information

Microchip MCP3906A-I/SS technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP3906A-I/SS.

Type
Parameter

Resolution
16

Sample Rate kSPS Max
14

Input Channels Differential
2

SNRtyp
0

SFDR typ
0

ENOB
0

INL Typ LSB
0

Download datasheets and manufacturer documentation for Microchip MCP3906A-I/SS.

The MCP3906A is an energy measurement IC supporting the IEC 62053 international energy metering specification. The output of the device includes a frequency proportional to the average active (real) power at the inputs as well as a higher frequency output proportional to the instantaneous power for meter calibration. The MCP3906A features dynamic range of 1000:1 and incorporates two 16-bit delta-sigma ADCs with a programmable gain up to 32. The integrated on-chip voltage reference has ultra-low temperature drift of 15 ppm/°C.

We welcome questions, comments and recommendations for improvements to this page - please contact us at: ADCwebrequests@microchip.com if you have any; please mention the part number in the email subject header.

Supplies active (real) power measurement for single-phase, residential energy metering
Supports IEC 62053 International Energy Metering Specification and legacy IEC 1036/61036/687 Specifications
Two multi-bit, DAC, second-order, 16-bit, Delta-Sigma Analog-to-Digital Converters (ADCs)
Ultra-low drift on-chip reference: 15 ppm/°C (typ.)
Low IDD of 4 mA (typ.)
AEC-Q100 Grade 1
