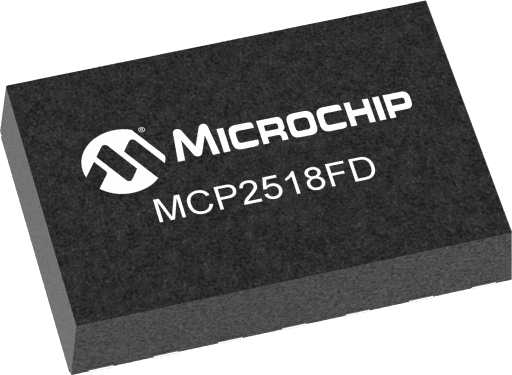

Microchip MCP2518FDT-H/QBB
Microchip MCP2518FDT-H/QBBMicrochip MCP2518FDT-H/QBB

Microchip MCP2518FDT-H/QBB

Manufacturer No:

MCP2518FDT-H/QBB

Manufacturer:

Microchip

Package:

14-VDFN Exposed Pad

Description:

External CAN FD Controller with SPI Interface

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP2518FDT-H/QBB information

Microchip MCP2518FDT-H/QBB technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP2518FDT-H/QBB.

  • Type
  • Parameter
  • Bitrate Max [MBits/s]
  • 8
  • CAN Controllers
  • 1
  • Functional Safety Standards
  • ISO 26262 – Up to ASIL B
  • Internal CAN Clock
  • No
  • LPM Current Max [uA]
  • 10
  • Message RAM [KB]
  • 2
  • Operating Voltage [V] Max
  • 5.5
  • Operating Voltage [V] Min
  • 2.7
  • RX FIFOs
  • 31
  • Rx Buffers
  • 0
  • SPI Interface
  • Yes
  • Serial Bus Speed [MHz]
  • 17
  • Standby Current Max [μA]
  • 0
  • TX Event FIFO
  • 1
  • TX FIFOs
  • 31
  • TX Queue
  • 1
  • TempRange [°C] Max
  • 150
  • TempRange [°C] Min
  • -40
  • Time Stamp [Bits]
  • 32
  • TX Buffers
  • 0
  • CAN FD
  • Yes

Download datasheets and manufacturer documentation for Microchip MCP2518FDT-H/QBB.

Application Notes:

Reference Manual:

Errata:

Data Sheets:

The MCP2518FD is a cost-effective and small-footprint External CAN FD Controller that can be easily added to a microcontroller with an available SPI interface. Therefore, a CAN FD channel can be easily added to a microcontroller that is either lacking a CAN FD peripheral or that doesn't have enough CAN FD channels.

The MCP2518FD supports both CAN frames in the Classical format (CAN 2.0B) and CAN Flexible Data Rate (CAN FD) format as specified in ISO11898-1:2015.

Please see our MikroElektronika click Board! https://shop.mikroe.com/mcp2518fd-click

Please see our functional safety feature page CAN/CAN FD


An MCAL driver is available upon request as described here: https://www.microchip.com/en-us/solutions/automotive-and-transportation/software

Please contact your local Sales representative.


The MCP2518FD is supported in the mainline linux kernel since Kernel version 5.10 and can be found here

Backports and an external kernel module can be found here



    Conforms to ISO 11898-1:2015
  • Supports both CAN 2.0B and CAN FD
  • Arbitration Bit Rate up to 1 Mbps
  • Data Bit Rate up to 8 Mbps
  • Up to 17 MHz SPI Clock Speed
    Flexible FIFO setup
  • 31 FIFOs configurable as transmit or receive
  • 32 Flexible Filter and Mask Objects
  • One Transmit Queue
    Misc
  • 32-bit Time Stamp
  • Bus Health Diagnostics and Error Counters
  • Temperature Range: -40°C to +150°C
  • Packages: VDFN14 (Wettable Flanks), SOIC14
    Low power consumption
  • Low power mode current: 10uA, Max
  • VDD: 2.7V-5.5V
  • Active Current Max: 12mA @ 5.5V, 40 MHz CAN Clock
    Built-In Safety features
  • Loopback mode
  • SPI commands with CRC to detect noise on SPI interface
  • ECC for the SRAM 1 bit correction, 2 bit detection

User Guide

PURCHASE
