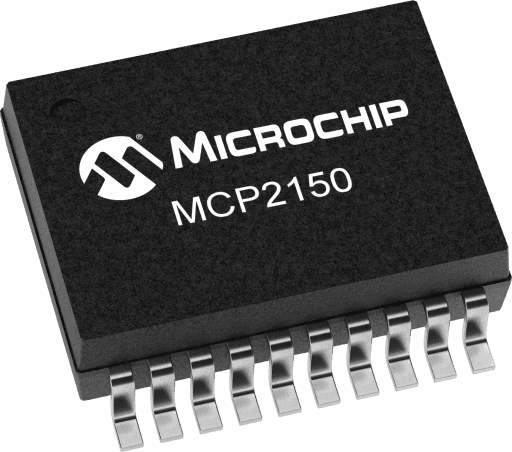

Microchip MCP2150-I/SO
Microchip MCP2150-I/SOMicrochip MCP2150-I/SOMicrochip MCP2150-I/SOMicrochip MCP2150-I/SO

Microchip MCP2150-I/SO

Manufacturer No:

MCP2150-I/SO

Manufacturer:

Microchip

Package:

18-SOIC (0.295, 7.50mm Width)

Description:

The MCP2150 provides IrDA protocol handling PLUS bit encoding/decoding functionality for Data Terminal Equipment (DTE) applications in one low pincou

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP2150-I/SO information

Microchip MCP2150-I/SO technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP2150-I/SO.

  • Type
  • Parameter
  • Xmit/Rec Formats supported (µS)
  • 1.63
  • Max. Baud Rate (baud)
  • 115200
  • Operating Voltage Min. (V)
  • 3.0
  • Operating Voltage Max. (V)
  • 5.5
  • Title
  • IrDA Protocol Stack handler plus bit encoding/decoding for DTE applications

Download datasheets and manufacturer documentation for Microchip MCP2150-I/SO.

Application Notes:

Supporting Collateral:

User Guide:

Brochures:

Errata:

Data Sheets:

The MCP2150 is a cost effective, low pin count (18-pin), easy to use device for implementing IrDA standard wireless connectivity. The MCP2150 provides support for the IrDA standard protocol “stack” plus bit encoding/decoding.

The serial interface baud rates are user selectable to one of four IrDA standard baud rates between 9600 baud and 115.2 kbaud (9600, 19200, 57600, 115200). The IR baud rates are user selectable to one of five IrDA standard baud rates between 9600 baud and 115.2 kbaud (9600, 19200, 37400, 57600, 115200). The serial interface baud rate will be specified by the BAUD1: BAUD0 pins, while the IR baud rate is specified by the Primary Device (during Discover phase). This means that the baud rates do not need to be the same. The MCP2150 operates in Data Terminal Equipment (DTE) applications and sits between a UART and aninfrared optical transceiver.

The MCP2150 encodes an asynchronous serial data stream, converting each data bit to the corresponding infrared (IR) formatted pulse. IR pulses received are decoded and then handled by the protocol handler state machine. The protocol handler sends the appropriate data bytes to the Host Controller in UART formatted serial data.

The MCP2150 supports “point-to-point” applications. That is, one Primary device and one Secondary device. The MCP2150 operates as a Secondary device. It does not support “multi-point” applications.

Sending data using IR light requires some hardware and the use of specialized communication protocols. These protocol and hardware requirements are described, in detail, by the IrDA standard specifications. The encoding/decoding functionality of the MCP2150 is designed to be compatible with the physical layer component of the IrDA standard. This part of the standard is often referred to as “IrPHY”.

The complete IrDA standard specifications are available for download from the IrDA website (www.IrDA.org).









    • IrLAP
    • IrLMP
    • IAS
    • TinyTP
    • IrCOMM (9-wire "cooked" service class)
    • Bidirectional communication
    • CRC implementation
    • Data communication rates up to 115.2 kbaud
    • Easily interfaces with Industry standard UARTs and infrared transceivers
    • UART interface for connecting to Data Terminal Equipment (DTE) systems
    • Transmit/Receive formats (bit width) supported: 1.63 µs
    • 9.6 kbaud
    • 19.2 kbaud
    • 57.6 kbaud
    • 115.2 kbaud
    • 9.6 kbaud
    • 19.2 kbaud
    • 38.4 kbaud
    • 57.6 kbaud
    • 115.2 kbaud
    • 64 Byte Data Packet Size
    • Programmable Device ID String
    • Operates as Secondary Device
