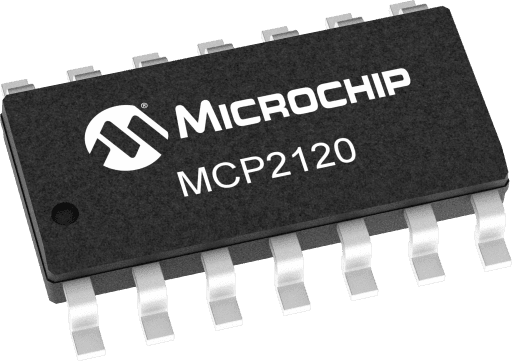

Microchip MCP2120T-I/SL

Manufacturer No:

MCP2120T-I/SL

Manufacturer:

Microchip

Package:

14-SOIC (0.154, 3.90mm Width)

Description:

The MCP2120 is a low-cost, high-performance, fully-static infrared encoder/decoder. This device sits between a UART and an infrared (IR) optical tran

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP2120T-I/SL information

Microchip MCP2120T-I/SL technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP2120T-I/SL.

Type
Parameter

Xmit/Rec Formats supported (µS)
1.63

Max. Baud Rate (baud)
312500

Operating Voltage Min. (V)
2.5

Operating Voltage Max. (V)
5.5

Title
Infrared Encoder/Decoder

Download datasheets and manufacturer documentation for Microchip MCP2120T-I/SL.

MCP2120 is a low-cost, high-performance, fully-static infrared encoder/decoder. This device sits between a UART and an infrared (IR) optical transceiver The data received from a standard UART is encoded (modulated), and output as electrical pulses to the IR Transceiver. The IR Transceiver also receives data which it outputs as electrical pulses that the MCP2120 decodes (demodulates) then transmits the data via the MCP2120 UART. This modulation and demodualtion method is performed in accordance with the IrDA standard.

Supports with IrDA® physical Layer Specification (version 1.3)
Interfaces with IrDA Compliant Transceivers
Used with any UART, including standard 16550 UART and microcontroller UART
Transmit/Receive formats supported: 1.63 µs
Up to IrDA standard 115.2 kbaud operation
Up to 312.5 kbaud operation (at 20 MHz)
Low power mode
Pb-free packaging

User Guide
