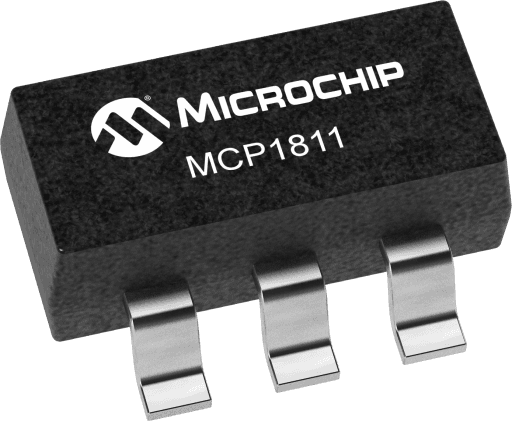

Microchip MCP1811BT-025/TT

Manufacturer No:

MCP1811BT-025/TT

Manufacturer:

Microchip

Package:

TO-236-3, SC-59, SOT-23-3

Description:

150 mA Ultra-Low Quiescent Current LDO Regulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP1811BT-025/TT information

Microchip MCP1811BT-025/TT technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP1811BT-025/TT.

Type
Parameter

Download datasheets and manufacturer documentation for Microchip MCP1811BT-025/TT.

Data Sheets:

1d207bab263ac27e8f6dced61726e880.pdf

The MCP1811/12 devices are 150 mA (MCP1811) and 300 mA (MCP1812) low dropout (LDO) linear regulators that provide high-current and low-output voltages while maintaining an ultra-low 250 nA of quiescent current during device operation. In addition, the MCP1811B/12B can be shut down for 5 nA (typical) supply current draw.

The MCP1811/12 family comes in nine standard fixed output-voltage versions: 1V, 1.2V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, and 4.0V. The 150/300 mA output current capability, combined with the low output-voltage capability, make the MCP1811/12 device family a good choice for new ultra-long-life LDO applications that have high-current demands, but require ultra-low power consumption during sleep periods.

The MCP1811/12 is stable with ceramic output capacitors that inherently provide lower output noise and reduce the size and cost of the entire regulator solution. Only 1 μF (2.2 μF for MCP1812) of output capacitance is needed to assure the stability of the system with a low noise output.

The MCP1811/12 can be paired with other ultra-low current devices, such as Microchip’s nanoWatt eXtreme Low Power (XLP) technology devices, for a complete ultra-low-power solution.

Ultra-Low Quiescent Current: 250 nA (typical)
Ultra-Low Shutdown Supply Current: 10 nA typ (MCP1811A) and 5 nA typ (MCP1811B)
Input Voltage Range: 1.8V to 5.5V
Standard Output Voltages: 1.0V, 1.2V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V and 4.0V
Low Dropout Voltage: 400 mV (typical) w/ Small Variation Over Load Range
Stable with Ceramic Output Capacitor: 1.0 uF
Overcurrent Protection w/ Foldback
Output Discharge (MCP1811A)
Available in 3 and 5 lead SOT-23, 3 and 5 lead SC70, 4 lead 1x1mm UDFN
