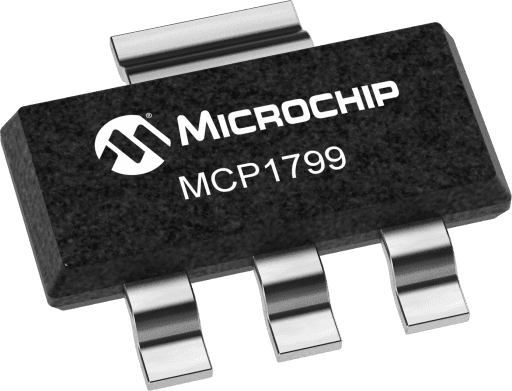

Microchip MCP1799T-3302H/TT

Manufacturer No:

MCP1799T-3302H/TT

Manufacturer:

Microchip

Package:

TO-236-3, SC-59, SOT-23-3

Description:

80 mA High Input Voltage Automotive LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP1799T-3302H/TT information

Microchip MCP1799T-3302H/TT technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP1799T-3302H/TT.

Type
Parameter

VIN Min (V) V (volt)
4.5

VIN Max V (volt)
45

VOUT V (volt)
3.3, 5.0

IOUT #1 Max mA (milliampere)
80

Rated IOUT Max mA (milliampere)
80

Quiescent Current µA (microampere)
25

Voltage Drop Typ (mV)
300

Accuracy (+/-) %
2

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
No

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MCP1799T-3302H/TT.

Data Sheets:

94408d14f5b4c055e0ff0d7385852bd3.pdf

Supporting Collateral:

7d1ebfc2584da2a9f0f0dbc96185a13d.pdf

The MCP1799 is a high-voltage, low-dropout (LDO) regulator, capable of generating 80 mA output current. The input voltage range of 4.5V to 45V makes it ideal in 12V to 36V power rails and in high-voltage battery packs.
The MCP1799 comes in two standard fixed output voltage versions: 3.3V and 5.0V. The regulator output is stable with 1 μF ceramic capacitors. The device is protected from short circuit events by the current limit function and from over heating by means of thermal shutdown protection.
The device itself has a low ground current of 45 μA typical, while delivering maximum output current of 80 mA. Without load the device consumes 25 μA typical.

AEC-Q100 with Grade 0 and PPAP Capable
Wide Input VOtlage Range: 4.5V to 45V
Extended Working Temperature Range: -40C to 150C
Low Quiescent Supply Current: 25 uA typical
Stable with 1 uF Ceramic Output Capacitor
Short Circuit Protection
Thermal Shutdown Protection: +180C typical
High PSRR: 70 dB @ 1kHz typcal
Available in SOT-23 and SOT-223
