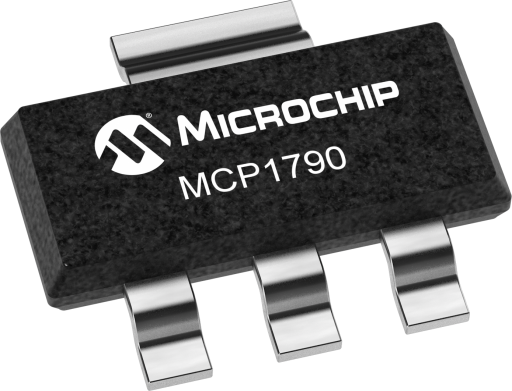

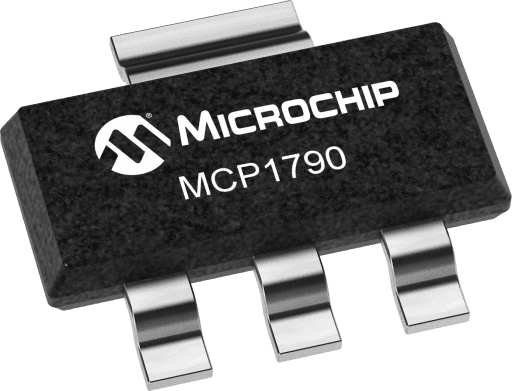

Microchip MCP1790T-3002E/DB

Manufacturer No:

MCP1790T-3002E/DB

Manufacturer:

Microchip

Package:

TO-261-4, TO-261AA

Description:

High-Voltage, LDO, 70 mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP1790T-3002E/DB information

Microchip MCP1790T-3002E/DB technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP1790T-3002E/DB.

Type
Parameter

VIN Min (V) V (volt)
6

VIN Max V (volt)
30

VOUT V (volt)
3.0, 3.3, 5.0

IOUT #1 Max mA (milliampere)
70

Rated IOUT Max mA (milliampere)
70

Quiescent Current µA (microampere)
70

Voltage Drop Typ (mV)
700

Accuracy (+/-) %
2.5

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
No

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MCP1790T-3002E/DB.

The MCP1790 is a 70 mA, ceramic output cap stable, high voltage, Low Dropout Regulator (LDO). The MCP1790 is capable of handling continuous input voltage of up to 30V and is load dump protect for up to 48V, making it especially suitable for automotive as well as 12V/24V industrial applications. The MCP1790 comes in thermally enhanced DDPAK-3 package as well as space-efficient SOT223-3 package. For shutdown and powergood options, see MCP1791

Wide steady state supply voltage: 6.0V - 30.0V
48V (43.5V ±10%) load dump protected for 180ms with a 30 second repetition rate
70 mA output current
Low quiescent current: 70 µA typical
Fixed output voltages: 3.0V, 3.3V, 5.0V
Extended Junction Temperature Range: -40 to +125°C
Output Voltage Tolerances of ±2.5% over the temperature range
Short Circuit Current Foldback
High PSRR, -90 dB@100 Hz (typical)
