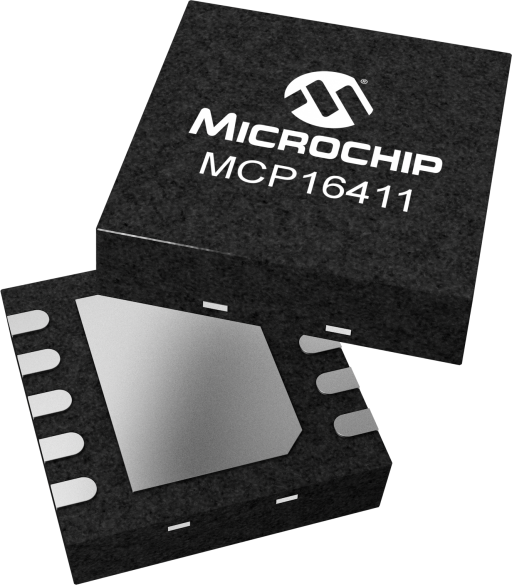

Microchip MCP16411-I/UN
Manufacturer No:
MCP16411-I/UN
Manufacturer:
Microchip
Package:
Description:
Low IQ Boost Converter with Auto Bypass and Low Battery Indicator
Quantity:
In Stock :7346
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MCP16411-I/UN Information
Microchip MCP16411-I/UN technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP16411-I/UN.
- Type
- Parameter
- Max Duty Cycle (%)
- 90
- Input Voltage Range Max V (volt)
- 5.25
- Input Voltage Range Min V (volt)
- 0.8
- # of Outputs
- 1
- Output Current
- 0
- Driver Type
- Boost
- Quiescent Current µA (microampere)
- 0.0045
- Synchronous Rectifier
- Yes
- Temp Range Max °C (degrees Celsius)
- 85
- Temp Range Min °C (degrees Celsius)
- -40
- Type
- Parameter
- VOUT Max V (volt)
- 5.25
- VFB V (volt)
- 0.97
- VOUT Min V (volt)
- 1.8
Download datasheets and manufacturer documentation for Microchip MCP16411-I/UN.
Data Sheets:
Product Brief:
The MCP16411 is a Boost regulator from the MCP1641X family of low quiescent current boost converters with integrated status indicators and wide input voltage range for a variety of battery powered applications. The regulator provides an automatic input-to-output voltage bypass operation which help in optimizing battery utilization and achieving high efficiency while fresh batteries’ nominal voltage is in the same range with the converter’s output value.
The MCP16411 use an automatic switchover from PWM to PFM mode for light load conditions, to maximize efficiency over a wide range of output current. The device can be powered by either single-cell, two-cell alkaline/NiMH batteries or single-cell Li-Ion/Li-Polymer batteries. A low-voltage designed architecture allows the regulator to start up without high inrush current or output voltage overshoot from a low input voltage. The start-up voltage is easily programmed by a resistive divider connected to the UVLO pin. If the resistive divider is not used, the default start-up voltage will be 0.85V. The 0.8V built-in UVLOSTOP helps prevent deep discharge of the alkaline battery, which may cause battery leakage. An open-drain Low Battery Output (LBO) pin will warn the user to replace the battery if the input voltage ramps down to the programmed UVLOSTART value.
The MCP16411 includes an additional feature to a low-voltage boost converter for safety: Over-temperature Output. Devices, such as personal care products, Bluetooth headsets or toys, will benefit from combined Power Good and Die Overtemperature (PGT) output, which flags a warning signal when the output level drops below 10% of its nominal value or the die temperature exceeds the factory programmed temp (75°C default). Both functions are implemented in the device on the same PGT pin.
The device also incorporates an output auto-discharge feature. While in shutdown, the device will automatically discharge the output capacitor using an internal switch.
- Available Packages:
- 10-lead MSOP
- 10-lead 3 mm x 3 mm TDFN
