Microchip MCP16312T-E/MNY
Microchip MCP16312T-E/MNY

Microchip MCP16312T-E/MNY

Manufacturer No:

MCP16312T-E/MNY

Manufacturer:

Microchip

Package:

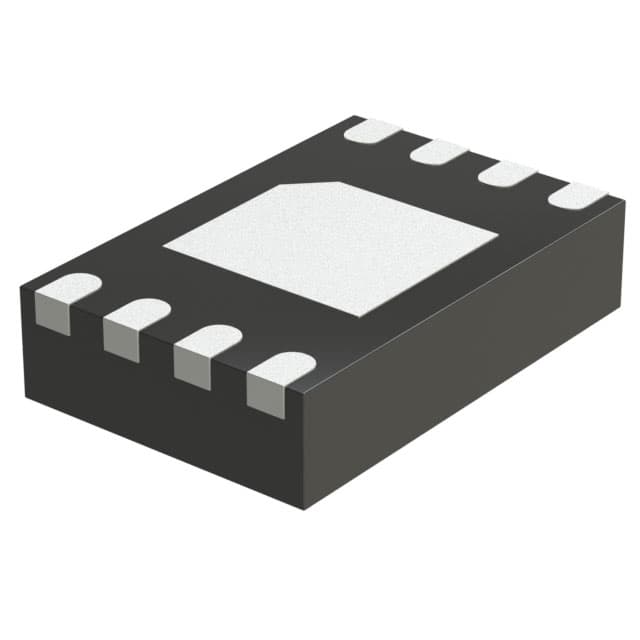

8-WFDFN Exposed Pad

Description:

30V Input, 1A Output, Synchronous Buck Regulator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP16312T-E/MNY information

Microchip MCP16312T-E/MNY technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP16312T-E/MNY.

  • Type
  • Parameter
  • Max Duty Cycle (%)
  • 94.0
  • Input Voltage Range Max
  • 30
  • Input Voltage Range Min
  • 4.4
  • # of Outputs
  • 1
  • Output Current
  • 1000
  • Driver Type
  • Buck
  • Quiescent Current
  • 0.085
  • Synchronous Rectifier
  • Yes
  • Temp Range Max °C (degrees Celsius)
  • 125
  • Temp Range Min
  • -40
  • Vout Max
  • 24
  • Vfb V (volt)
  • 0.8
  • Vout Min
  • 2

Download datasheets and manufacturer documentation for Microchip MCP16312T-E/MNY.

Product Brief:

User Guide:

Errata:

Data Sheets:

The MCP16311 is a compact, high-efficiency, fixed frequency PWM/PFM, synchronous step-down DC-DC converter in a 8-pin MSOP, or 2 x 3 TDFN package that operates from input voltage sources up to 30V.  Integrated features include a high-side and a low-side switch, fixed frequency Peak Current Mode Control, internal compensation, peak-current limit and overtemperature protection. The MCP16311 provides all the active functions for local DC-DC conversion, with fast transient response and accurate regulation.

  • Up to 95% Efficiency
  • Input Voltage Range: 4.4V to 30V
  • 1A Output Current Capability
  • Output Voltage Range: 2.0V to 24V
  • 170mΩ, Low Side
  • 300mΩ, High Side
  •  Stable Reference Voltage: 0.8V
  • MCP16312 provides PWM-only operation
  • Low Device Shutdown Current: 3 μA typical
  • 44 μA (non-switching, PFM Mode)
  • Internal Compensation
  • Internal Soft-Start: 300 μs (EN low to high)
  • Peak Current Mode Control
  • Cycle-by-Cycle Peak Current Limit
  • 4.1V typical to start
  • 3.6V typical to stop
  • Overtemperature Protection
  • MSOP-8 or 2x3 TDFN-8 package
